ETHERMA eFOIL - HEATING FOIL 24V For wall & ceiling

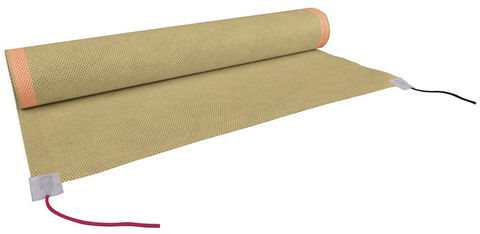

ETHERMA eFOIL is a vapour-permeable, fleece-covered and adhesion-optimized heating foil for wall or ceiling installation in filler, fine plaster or tile adhesive. Its extremely low thickness of only 0.4 mm enables a very low installation height. The film is used both to heat rooms and to seal off the cold on walls. The layer structure of the eFOIL heating foil is created using a patented manufacturing process and is homogeneously fused. This ensures durability and even heat distribution. Thanks to their nature, work can be carried out at any time within the heating surfaces, such as attaching pictures or cutting out openings for switches, thermostats or recessed spotlights.
Benefits of this product
-
Extremely low installation height thanks to 0.4 mm thin heating foil
Suitable for wall and ceiling heating
Subsequent work on the heated surface is possible - e.g. drilling, hammering in nails, installing flush-mounted sockets
Fast response time due to laying close to the surface
Fleece-laminated and adhesion-optimized by perforation
Simple installation - also retrospectively and in the inhabited state
Technical details
| Voltage: | 24 V |
| Output: | 110 oder 220 W/m² |
| Temperature resistant: | up tp 70 °C |
| Thickness: | 0,4 mm |
| Width of mat: | 60 cm |
| Structure: | Foil with 1 mm perforation openings |
| Safety function: | SELV |
| Connection: | 2x 4 m; 2,5 mm² |
| Certification: | EC kompliant |
Selection guide
eFOIL-110 W/m2
Temperature control of walls as prevention against mold, as a barrier against wall cold or as a main heating system in low-energy housing.
eFOIL-220 W/m2
As wall or ceiling heating for higher heating requirements such as spas.
