Main areas of application for underfloor heating under parquet and laminate

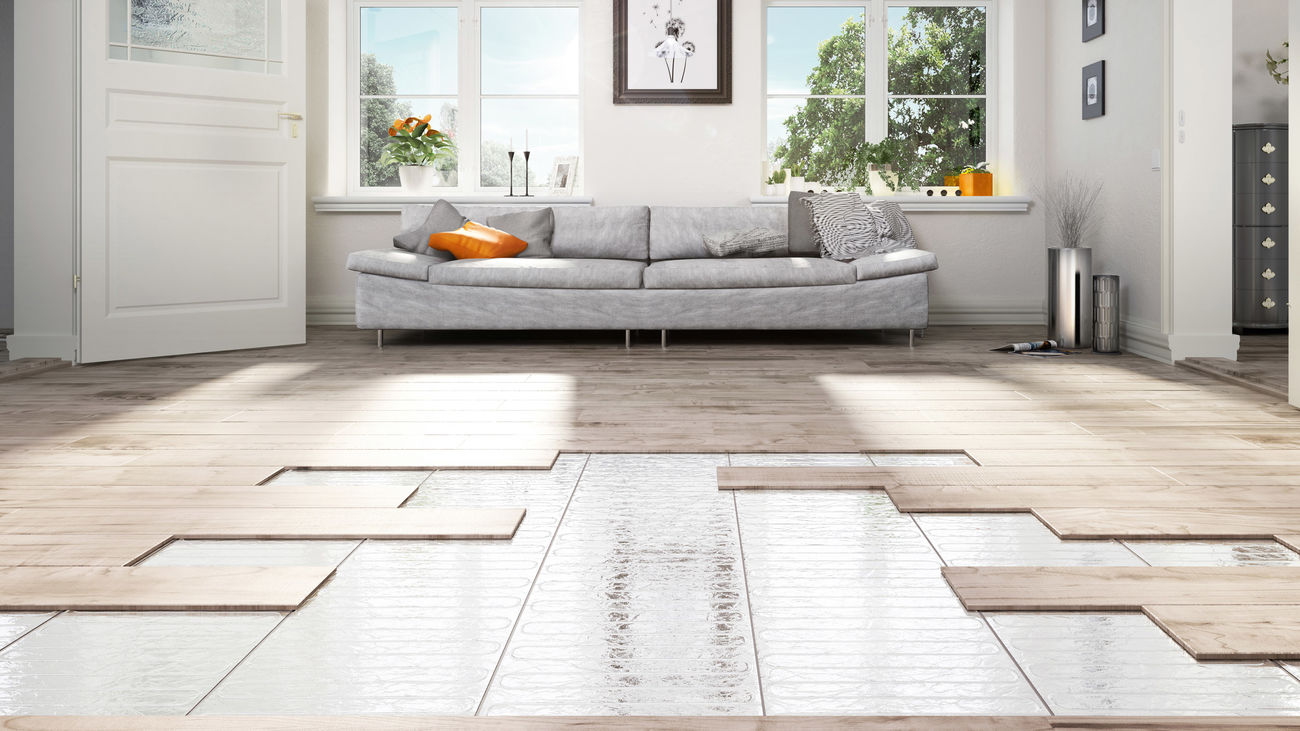

A laminate or parquet floor places particular requirements on heating systems. Laminotherm from ETHERMA allows pleasantly warm floors under almost any kind of parquet- or laminate flooring. Thanks to its low installation height (1.3 mm), Laminotherm from ETHERMA is ideal for renovations on top of existing screed and/or under a new floor covering. This heating system is installed in a floating way. The reinforced aluminium webbing guarantees an optimal distribution of heat and prevents the build-up of "hot spots".

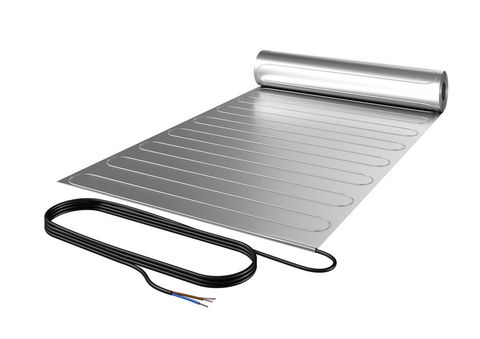

UNDERFLOOR HEATING UNDER PARQUET AND LAMINATE FLOORS - ETHERMA laminotherm
Benefits of this product
-
Only 1.3 mm thin
-
Ideal heat distribution due to special foil
-
Very low magnetic field < 25 nT
-
Easy and quick mounting due to the floating installation and
one connection line
Technical details
| Rated output: | 230 V |
| Output: | 120 W/m² |
| Temperature-resistant: | up to 90 °C |
| Netted heating mat thickness: | 1,3 mm |
| Insulation: | Fluor Polymer PFA |
| Protection rating: | IP X7 |
| Protective measure: | Earth-leakage circuit breaker, 30 mA |
| Connection line: | 5 m; 2 x 1.0 mm² + protective braid |
| Test certification: | SEMKO |
Dimensions
For use in dry rooms.
LM-120 W/m²
As main heating in kitchens, bathrooms, foyers or winter gardens with standard
insulation. Or for temperature control in the event of poor insulation and/or
increased demand for heat.
Download

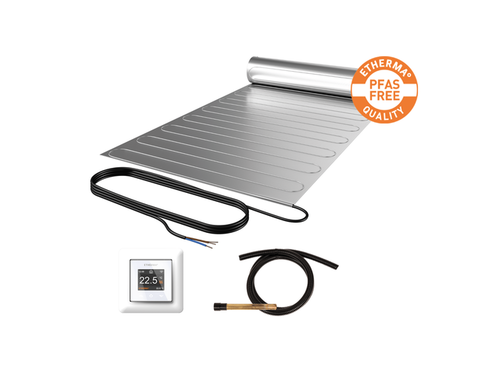

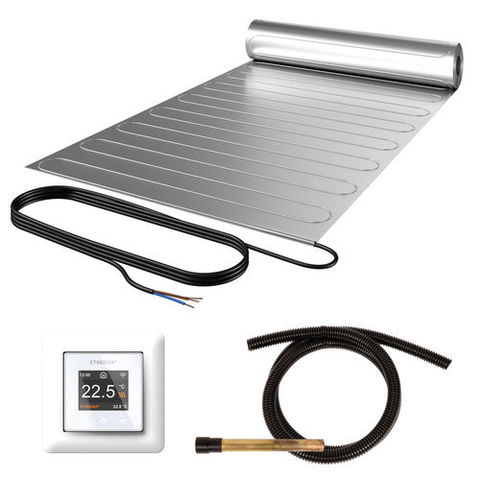

LAMINOTHERM-SET ETHERMA eFLOOR LM PRO With intelligent built-in switch thermostat eTOUCH PRO
Set
> 1 x Laminotherm 122-LM, 120 W/m²
> 1 x eTOUCH-eco switch-mounted thermostat
> 1 x FSH-12 sensor conduit
incl. 2.5 m SS-12 installation hose
Benefits of this product
-
Only 1.3 mm thin
-
Ideal heat distribution due to special foil
-
Very low magnetic field < 25 nT
-
Easy and quick mounting due to the floating installation and
one connection line
Dimensions
For use in dry rooms.
LM-120 W/m²
As main heating in kitchens, bathrooms, foyers or winter gardens with standard
insulation. Or for temperature control in the event of poor insulation and/or
increased demand for heat.
Download

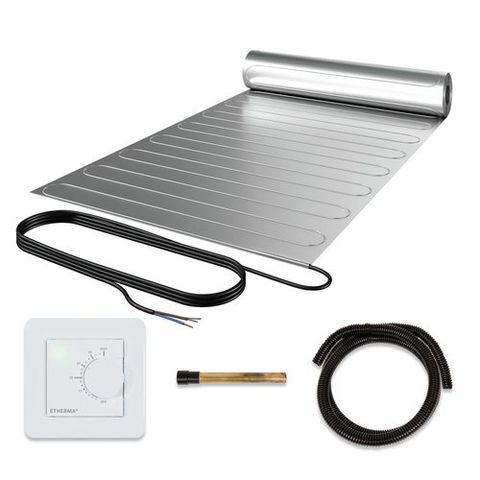

LAMINOTHERM SET eFLOOR LM BASIC - WITH eBASIC ELECTRONIC SWITCH-MOUNTED THERMOSTAT
Set
> 1 x Laminotherm 122-LM, 120 W/m²
> 1 x eBASIC switch-mounted thermostat
> 1 x FSH-12 sensor conduit
incl. 2.5 m SS-12 installation hose
Benefits of this product
-
Only 1.3 mm thin
-
Ideal heat distribution due to special foil
-
Very low magnetic field < 25 nT
-
Easy and quick mounting due to the floating installation and
one connection line
Dimensions
For use in dry rooms.
LM-120 W/m²
As main heating in kitchens, bathrooms, foyers or winter gardens with standard
insulation. Or for temperature control in the event of poor insulation and/or
increased demand for heat.
Download
