Main areas of application for underfloor heating in screed
Ideal for new-builds or when the screed is also renewed during renovation - for full heating versions, the electricity is stored in the form of warmth in the concrete core of the floor, and gradually released into the room. The final floor covering is by and large independent of the underfloor heating. An ideal heating system for low energy- and passive housing. Become energy-independent in combination with your own electricity production.

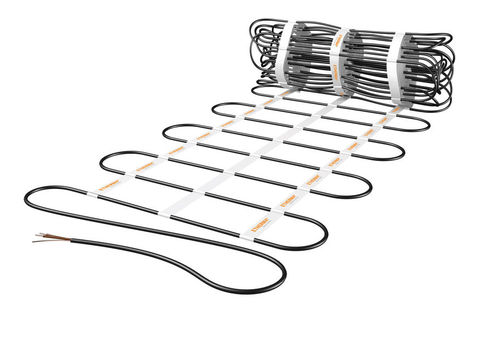

UNDERFLOOR STORAGE AND PARTIAL STORAGE HEATING SYSTEMS - ETHERMA RS
Benefits of this product
-
40 to 240 W/m²
-
Very low magnetic field < 25 nT
-
Only one connector cable
-
Ideal heating system for heating low energy and passive houses
-
Various sizes and outputs enable easy planning and simple installation
Technical details
| Rated output: | 230 V |
| Output: | 60, 80, 100, 120, 150 W/m² |
| Output on request: | 40, 175, 200, 240 W/m² |
| Temperature-resistant: | up to 90°C |
| Heat conductor structure: | In accordance with VDE NH2G2GQUY |
| Min. bending radius: | 5d |
| Protection rating: | IP X7 |
| Protective measure: | Earth-leakage circuit breaker, 30 mA |
| Connection line: | 3 m; 2 x 1.5 (2.5) mm² with aluminium screen + protective conductor |
| System structure: | CE compliant |
Dimensions
Take advantage of our free offer, planning and ordering service. The ETHERMA technical team will assist you to calculate your heating needs, as well as size and plan your electrical underfloor heating. In addition, we will help you to select the best electricity tariff based on the activation times of each EVU, or we will provide you with a suitable solution in combination with a PV system.
Download

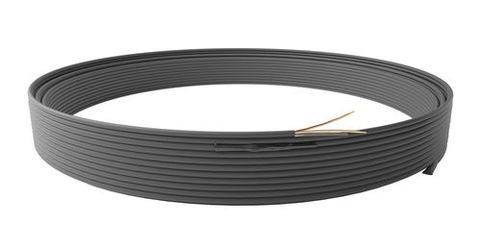

ETHERMA RLH - DIPOLE HEATING LOOP FOR FREE-MOUNT INSTALLATION IN SCREED FLOORING
Benefits of this product
-
100 to 267 W/m2
-
Ideal for free laying
-
Perfect for challenging room geometry
-
Easy installation due to one connection line
-
Flexible laying distance
-
Connection line custom-made available
-
Finishing custom-made available
Technical details
Download
CASE STUDY
INGENIOUS WARMTH FOR A YOUNG FAMILY COST-EFFECTIVE, CLEAN, COMFORTABLE AND INTELLIGENT – THIS IS THE WAY TO HEAT TODAY
THE INITIAL SITUATION
A young family wanted to set up the home of their dreams in a modern new-build in Salzburg. For this, they needed a clean, comfortable and cost-effective heating solution.
THE ETHERMA SOLUTION
Independence from oil and gas was very important to the family, and they also wanted a healthy room climate as free from dust as possible, as well as a maintenance-free heating system. The ideal place for ETHERMA screed heating in combination with a PV system and modern home automation.
