UNDERFLOOR HEATING

CUSTOM-MADE HEATING MATS The individual solution für underfloor heating

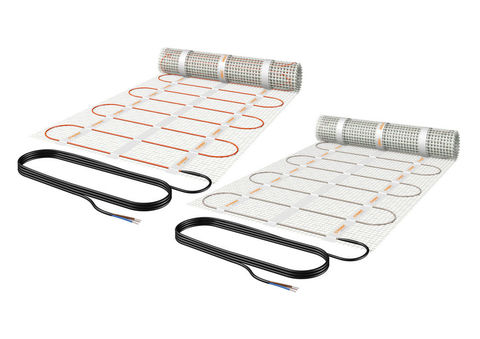

ETHERMA is one of the few manufacturers to offer its netted heating mats individually custom-made - for technically perfect, simple and rapid installation, even in unusual architectural settings. Custom-made netted heating matting is the ideal solution - especially for baths and wellness areas. Examples include heated loungers, benches, steam showers and shower trays. Any other particular layout geometry can also be perfectly heated with our custom-made netted heating mats.

ETHERMA custom-made netted heating mats were developed to fit perfectly into their architectural surroundings. The custom-made mats come in a single piece and thus ensure simple, fast installation without trimming. ETHERMA offers expert service to create the perfect netted heating mat.

The steps to a custom-made heating mat Send us the following information

APPLICATION

The exact description of the use of the net heating mat is a prerequisite for the technically optimal design.

So do you want to:

Tempering or heating?

What is the desired surface temperature?

How good is the insulation?

SHAPE

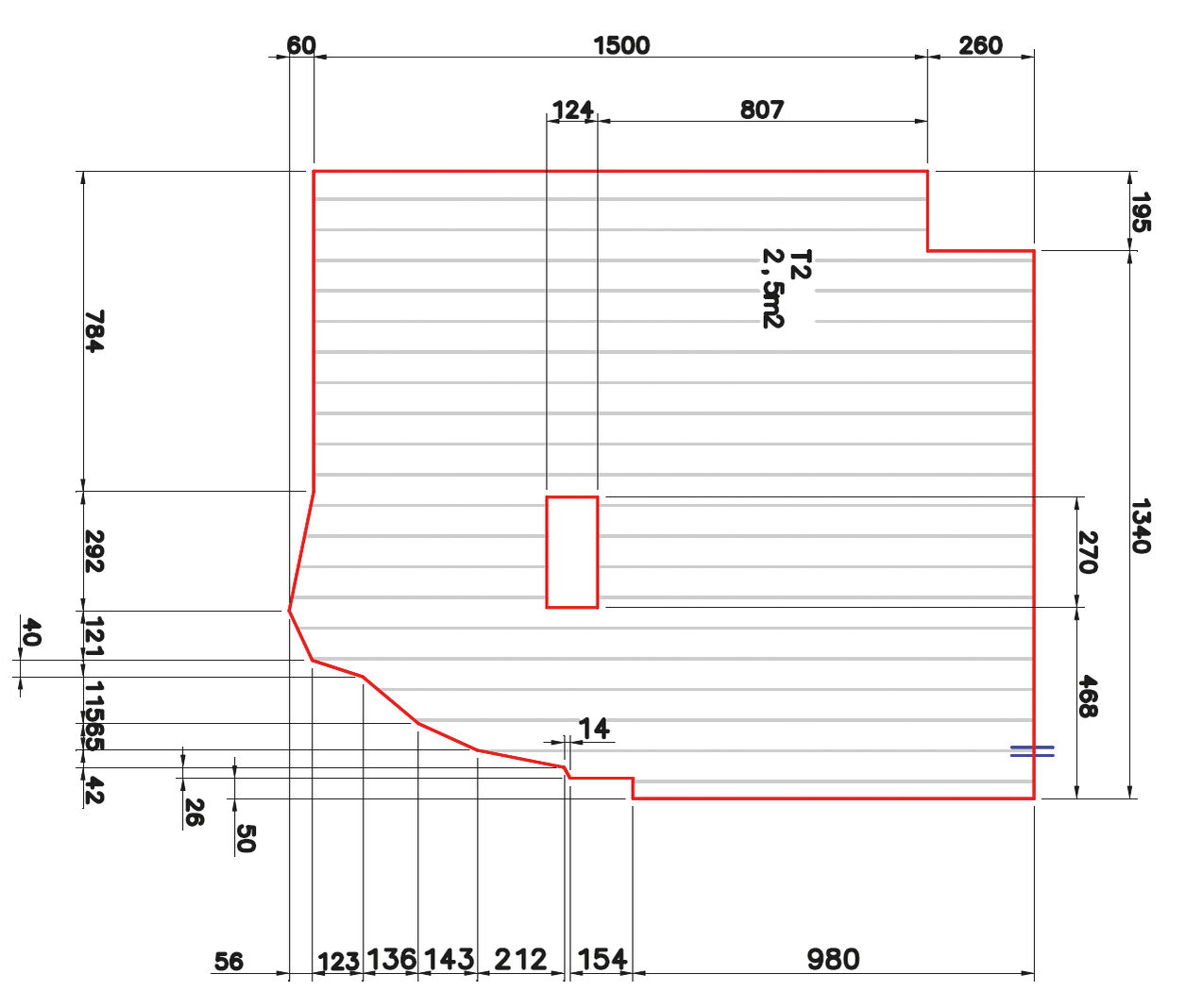

A precise sketch, CAD drawing or template with details and dimensions of the curves, corners, edges and roundings facilitate planning. Also note the exact positioning of the connection and the desired length of the connection cable.

HEATING LINE

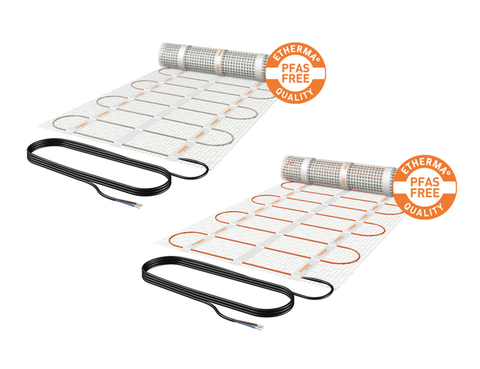

For all custom-made net heating mats, two different types of heating conductors are available to guarantee a technically optimal solution and perfect operation.

SEWING DIRECTION

In order to prevent damage to the heating element of the net heating mat when it is folded around corners and edges, the sewing direction must be taken into account in the planning - i.e. horizontal or vertical.

We are happy to help!

Fast and flexible, even in complicated laying geometries

For bathrooms, wellness areas

Heated benches, steam showers, shower trays

Special solutions of all kinds - from a stable through to a luxury yacht

APPLICATION.

A precise description of the intended use of the netted heating mat is crucial to its optimal technical execution.

So, do you want:
›    Temperature control or heating?
›    How high is the surface temperature that you want?
›    How good is the insulation?


FORM.
A precise sketch, CAD drawing or template with information on dimensions of curves, corners, edges and rounding simplify the planning process.

CONNECTOR POSITION.
Note the exact position of the power connector and the desired length of the connector cable.


HEAT CONDUCTOR.
You can choose from two different types of heat conductor for all custom-made netted heating mats, in order to guarantee a technically optimal solution and trouble-free operation.


STITCHING DIRECTION.
In order to prevent damage to the heat conductors in the netted heating mat when laying over corners and edges, the stitching direction - horizontal or vertical - must be taken into consideration during planning.

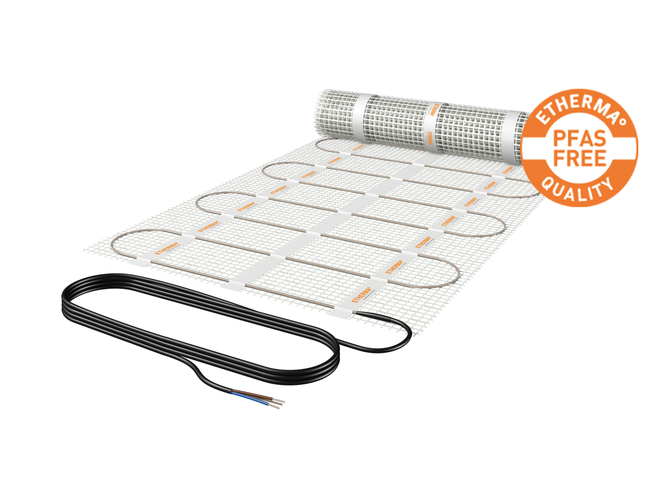

ETHERMA DS custom-made

Rated output: 230 V
Output: up to 200°C
Temperature-resistant: up tp 90°C
Heating conductor thickness: max. 2,7 mm
Protection rating: IP X7
Protective measure: Earth-leakage circuit breaker, 30 mA
Connection line: 4 m; 2 x 1.0 mm²/1.5 mm² + protective braid
Test certification: VDE

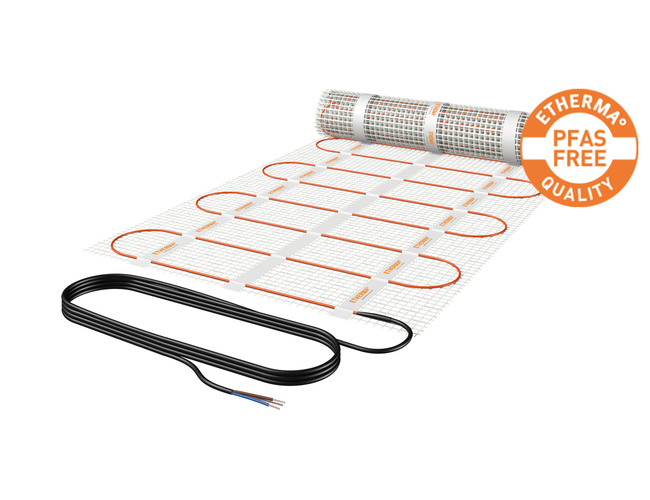

ETHERMA NST custom-made

Rated output: 230 V, 400 V
Output: up tp 300 W/m²
Temperature-resistant: up to 150°C
Heating conductor thickness: max. 3,3 mm
Protection rating: IP X7
Protective measure: Earth-leakage circuit breaker, 30 mA
Connection line: 4 m; 2 x 1.0 mm² + protective braid
System structure: CE compliant

ETHERMA WST custom-made

Rated output: 230 V
Output: up to 300 W/m²
Temperature-resistant: up to 150°C
Heating conductor thickness: max. 3,3 mm
Protection rating: IP X7
Protective measure: Earth-leakage circuit breaker, 30 mA
Connection line: 4 m; 2 x 1.0 mm² + protective braid
System structure: CE compliant

CASE STUDY

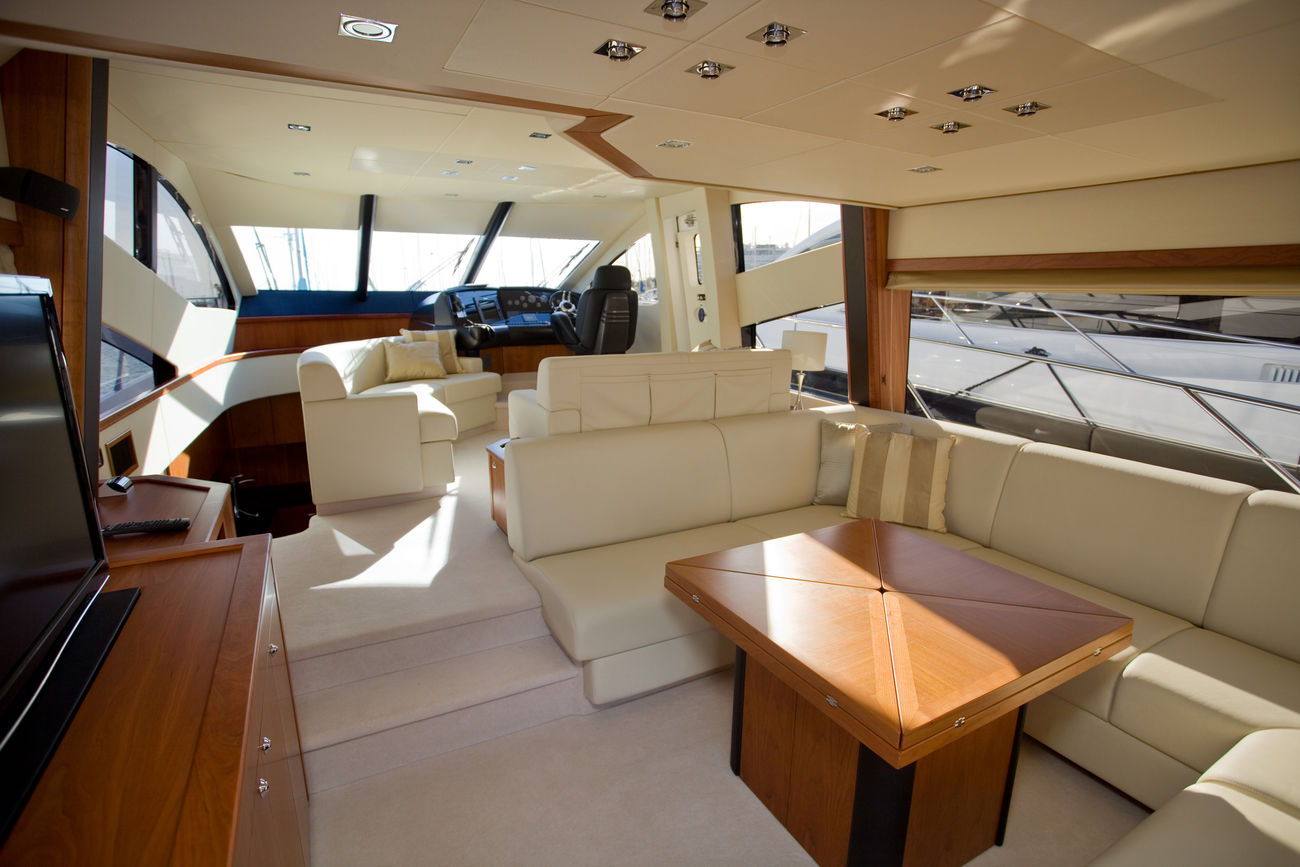

Ingenious warmth on the high seas No more cold feet on your luxury motor yacht

THE INITIAL SITUATION

A luxury yacht outfitter was looking for a particularly professional partner who could provide the right heating solution even in the trickiest of cases. ETHERMA netted heating mats are also made to measure. For areas, whose special geometry required it - the laying work then becomes child's play.

THE ETHERMA SOLUTION

In this instance, ETHERMA delivered around 120m² of netted heating mats, the majority custom-made in order to ensure fast, simple laying. The stringent safety requirements in shipbuilding were adhered to thanks to expert advice from the ETHERMA project team. It was also important to take the weight rules into account here - not a problem for ETHERMA's thin netted heating mats.
