SMALL STORAGE HEATER

SMALL STORAGE HEATER Efficient hot water preparation with ETHERMA AQUA.

Small Storage - great benefit

With 5l to 10l, small storage tanks are ideally suited to supply small amounts of hot water at short notice. Thanks to the good insulation, it works particularly efficiently. Thanks to its small, compact design, they fit easily in the kitchen cabinet by the sink or under the guest hand washbasin. As a result, the line path is extremely short and efficiency increases. In contrast to electric instantaneous water heaters, however, they do not require a high-voltage current, but are operated with a 230V connection.



PRESSURE-LESS OR PRESSURE-RESISTANT SMALL STORAGE

Pressure-resistant small under-table storage tanks are required wherever several supply points, such as the guest hand wash basin and the kitchen sink, are to be supplied with hot water from one point. Because the small storage tank is constantly under pressure, our tank is not made of plastic, but of stainless steel. The single device is a bit more expensive due to the higher quality tank, but only one device is required for several draw-off points. Another advantage is the high level of security with the stainless steel tank. In addition, the normal pressure fittings with only two lines can be used for the installation.

However, if only one tapping point is to be served, our devices are also suitable for a pressureless connection. Special fittings with three connection lines are required for this - standard fittings cannot be used. The tank is always connected to the outside air. When warm water is withdrawn, the hot water valve opens the cold water inlet so that it continues to run into the tank. This pushes the hot water to the tap.

PRODUCT RANGE

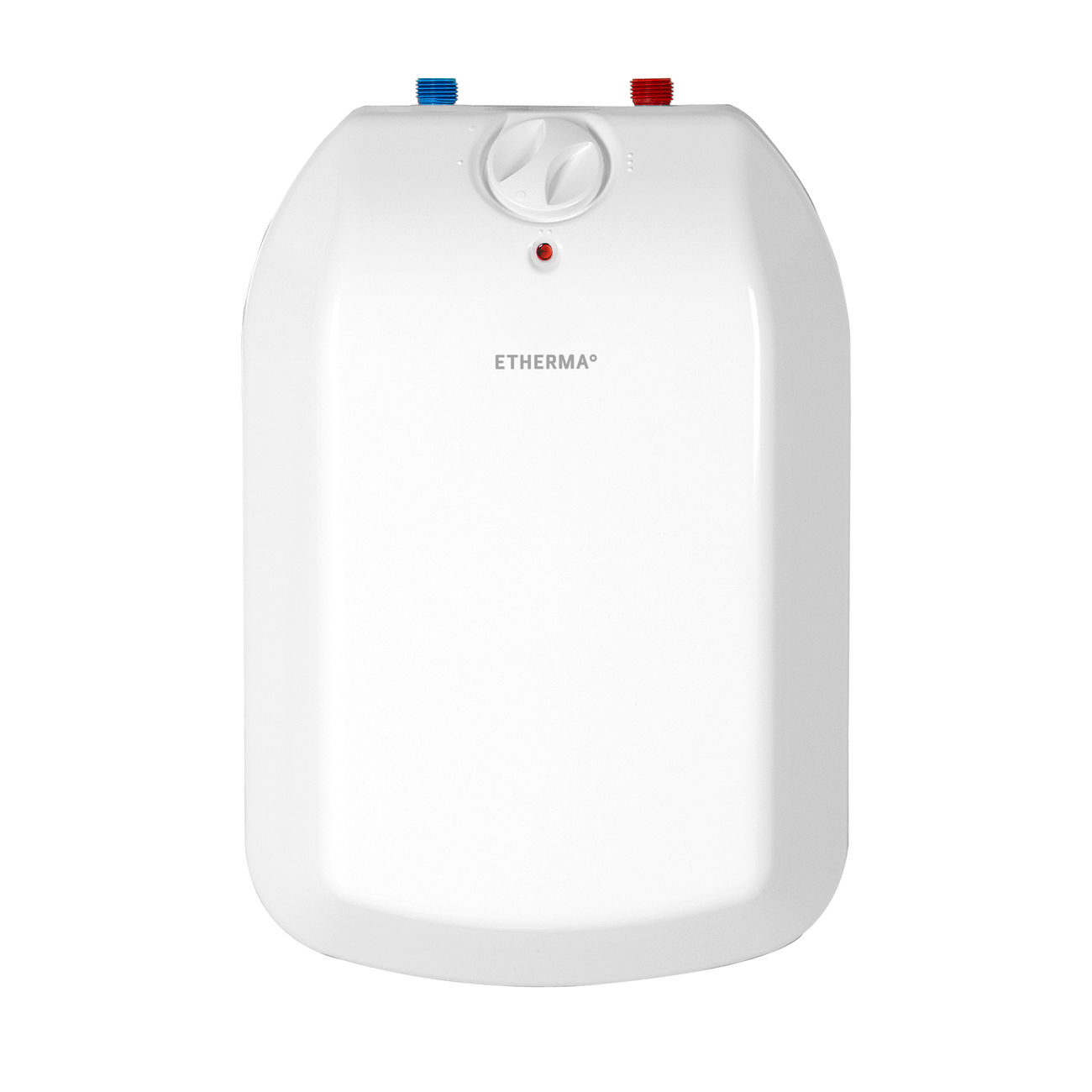

AQUA WSP 5D
Small storage
Pressure resistant
5l - for wash basins
High temperature 23 °C - 70 °C
Maximum safety thanks to the stainless steel tank
Energy efficiency class A

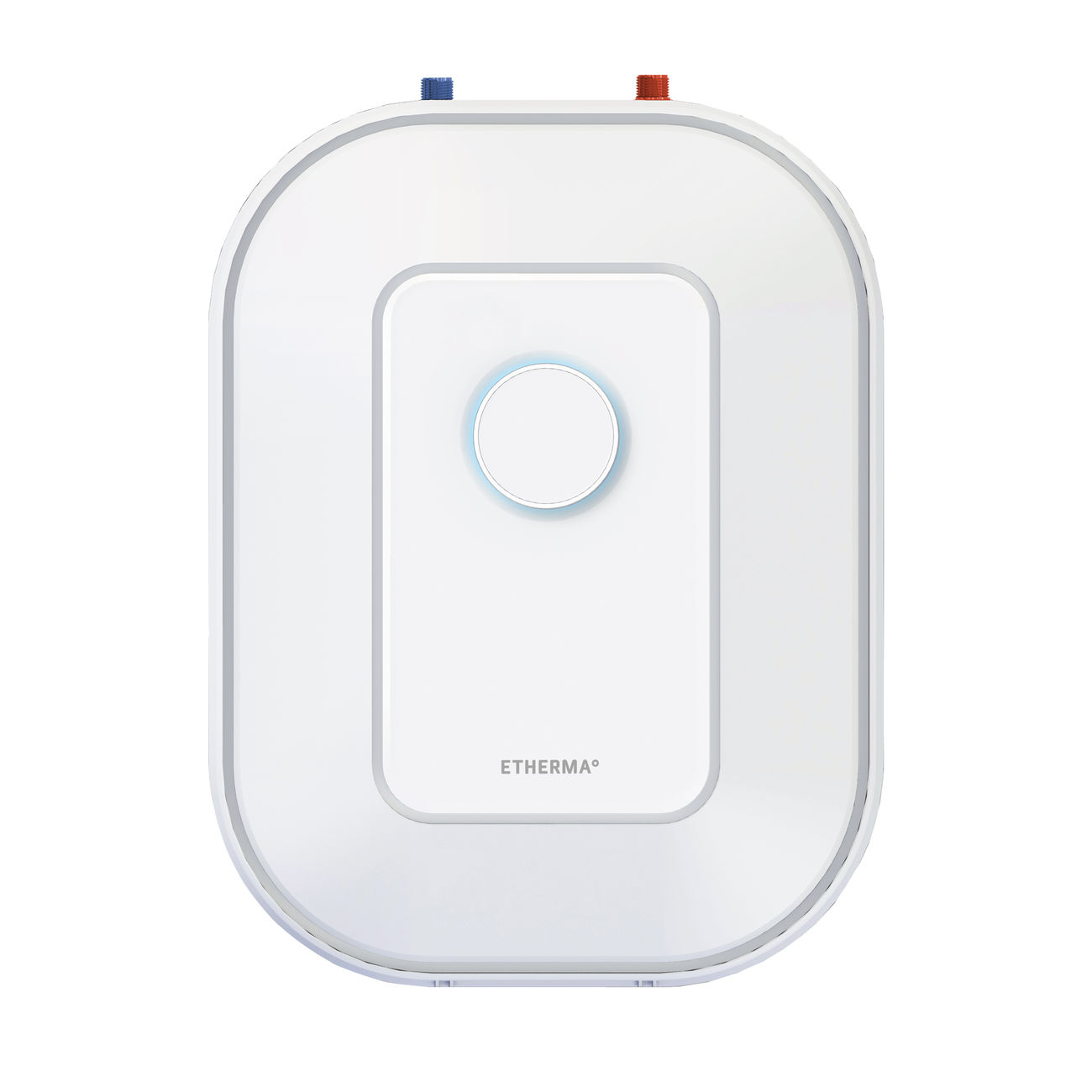

AQUA WSP 10D
Small storage
Pressure resistant
10l - for wash basins or sinks
High temperature 23 °C - 70 °C
Maximum safety thanks to the stainless steel tank
Energy efficiency class A
