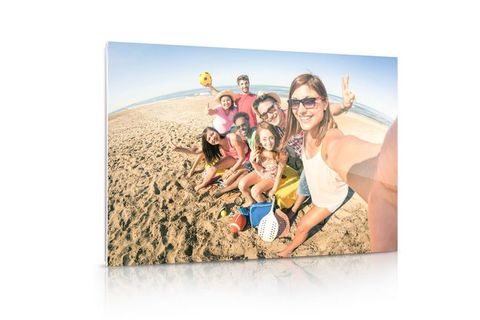

LAVA® DYL 2.0 DESIGN YOUR LAVA® Design your individual infrared heating panel
LAVA® DYL 2.0 offers you the possibility to individually design your LAVA® GLAS 2.0 or LAVA® BATH 2.0 infrared heater. We print your desired theme - whether a holiday photo or company logo, so that the infrared heater fits perfectly into your environment. The LAVA® DYL is suitable for wall installation, and can be mounted vertically or horizontally. All LAVA® DYL are supplied as standard with a power cord and an ON/OFF switch and are Plug & Play ready.
LAVA® DYL 2.0 GLAS
Benefits of this product
-
Your LAVA® entirely the way you imagine it (e.g. logo, photo)
-
Optimised insulation reduces convection component
-
Large infrared radiation surface
-
Plug & Play connection system for easy individual control
-
Maintenance-free and magnetic field-free
ETHERMA HINT:
File should be at least 5 MB in size, with a 300 dpi resolution! Should you have
any questions, please contact: marketing(kwfat)etherma(kwfdot)com.
Technical details
| Voltage: | 230 V |
| Output: | 180 - 700 W |
| Surface temperature: | max. 70 °C at standard internal temp. |
| Surface: | 6 mm ESG safety glass |
| Device/Installation depth: | 30/61 mm |
| Protection rating: | IP X4 |
| Protection class: | I |
| Connection: | Patch cord 1 m |
| Wall mounting: | horizontally or vertically |
| Warranty: | 5 years |
| Certification: | TÜV |

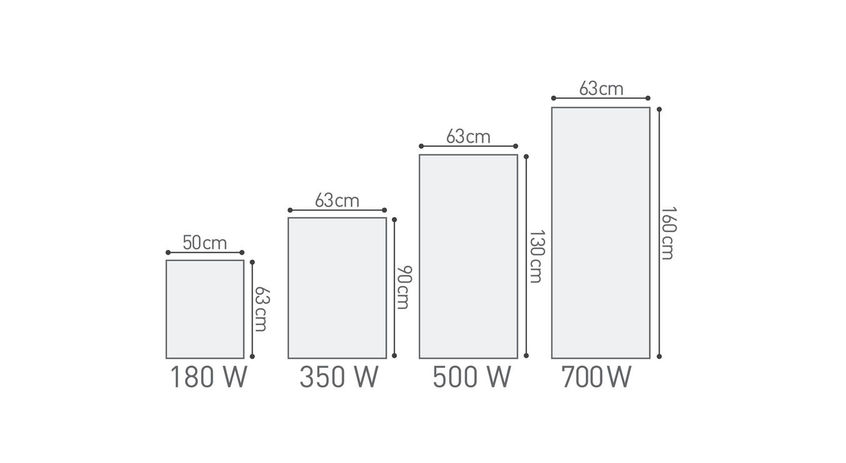

Dimensions
Printing information

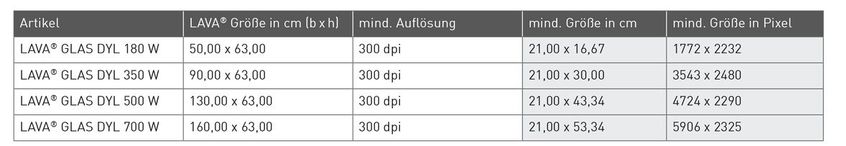

Minimum requirements of the pictures:
Depending on the size of the LAVA, the image must also be of a certain size.
Here are the instructions for finding the image information and comparing with the
table below:
PLEASE NOTE: We check the image quality and inform you if the
image is printable.
FALSE RULES: Images should have at least 5 MB (at 300
dpi) or more, otherwise the quality of the print will be reduced too
much.
If your image does not have the correct format for the shape of the LAVA®, send us
your file with at least 5 MB at 300 dpi to marketing(kwfat)etherma(kwfdot)com and we will place
your image on the infrared heater.
Note for customers:
Please remember that these are minimum requirements for a good-quality
result.
The larger your image or photo, the more detailed the print will be
Download

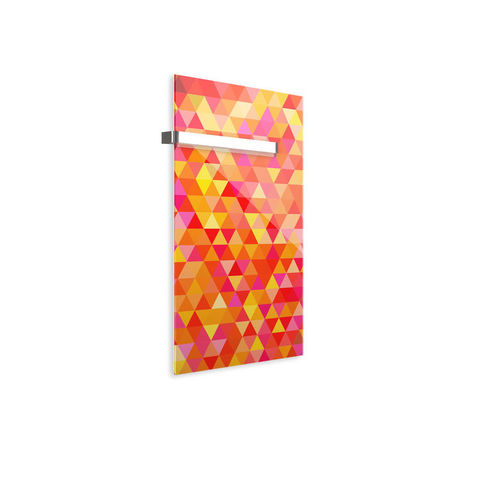

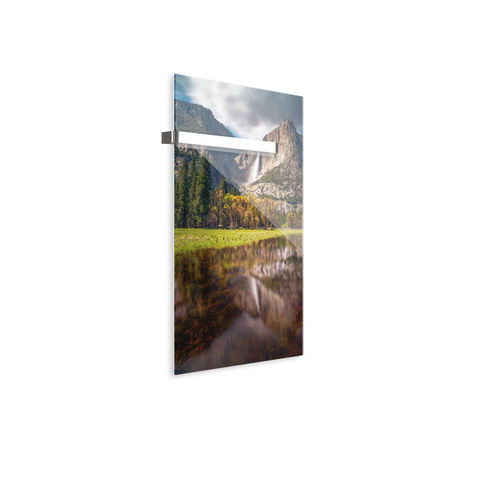

LAVA® DYL 2.0 BATH GLAS incl. towel holder
Benefits of this product
-
Your LAVA® entirely the way you imagine it (e.g. logo, photo)
-
Optimised insulation reduces convection component
-
Large infrared radiation surface
-
Plug & Play connection system for easy individual control
-
Maintenance-free and magnetic field-free
ETHERMA HINT:
File should be at least 5 MB in size, with a 300 dpi resolution! Should you have
any questions, please contact: marketing(kwfat)etherma(kwfdot)com.
Technical details
| Voltage: | 230 V |
| Output: | 350, 500, 700 W |
| Surface temperature: | max. 70 °C at standard internal temp. |
| Surface: | 6 mm ESG safety glass |
| Device/Installation depth: | 30/61 mm |
| IP rating: | IP X4 |
| Connection: | Patch cord 1 m |
| Wall mounting: | horizontally or vertically |
| Warranty: | 5 years |
| Certification: | TÜV |

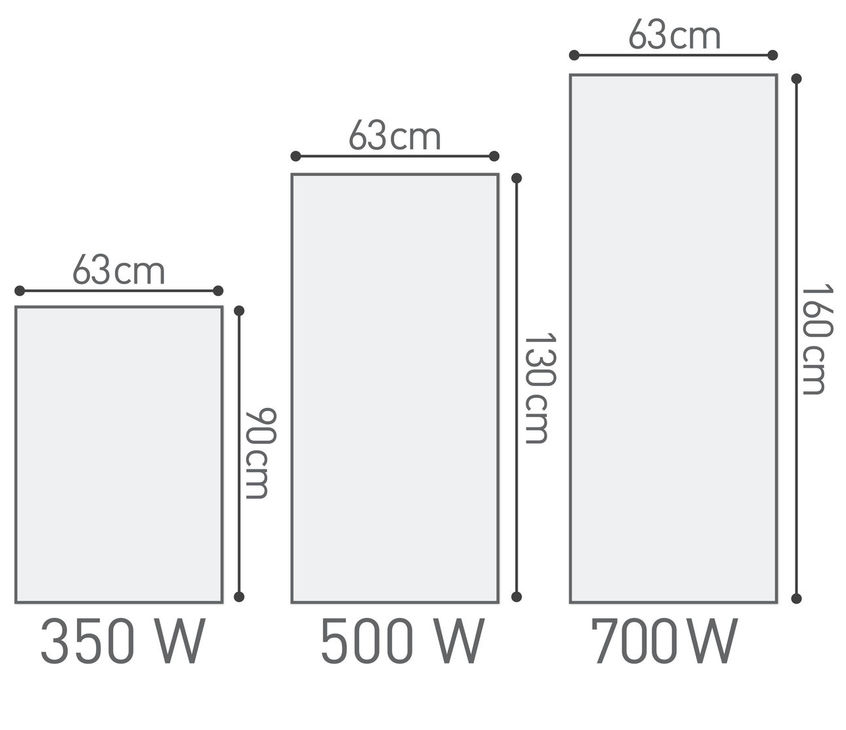

Dimensions
Printing information
Minimum requirements of the pictures:
Depending on the size of the LAVA, the image must also be of a certain size.
Here are the instructions for finding the image information and comparing with the
table below:
PLEASE NOTE: We check the image quality and inform you if the
image is printable.
FALSE RULES: Images should have at least 5 MB (at 300
dpi) or more, otherwise the quality of the print will be reduced too
much.
If your image does not have the correct format for the shape of the LAVA®, send us
your file with at least 5 MB at 300 dpi to marketing(kwfat)etherma(kwfdot)com and we will place
your image on the infrared heater.
Note for customers:
Please remember that these are minimum requirements for a good-quality
result.
The larger your image or photo, the more detailed the print will be
Download
