BUILT-IN INFRARED HEATING The invisible heating.

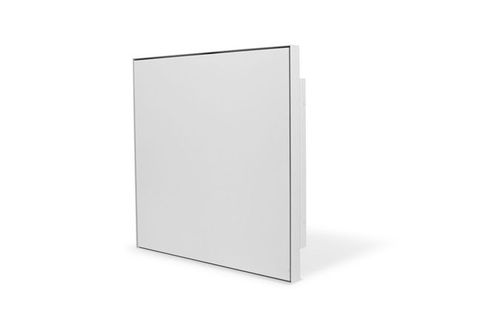

LAVA® FRAME – The flush-mounted LAVA® infrared heater for wall and ceiling installation.

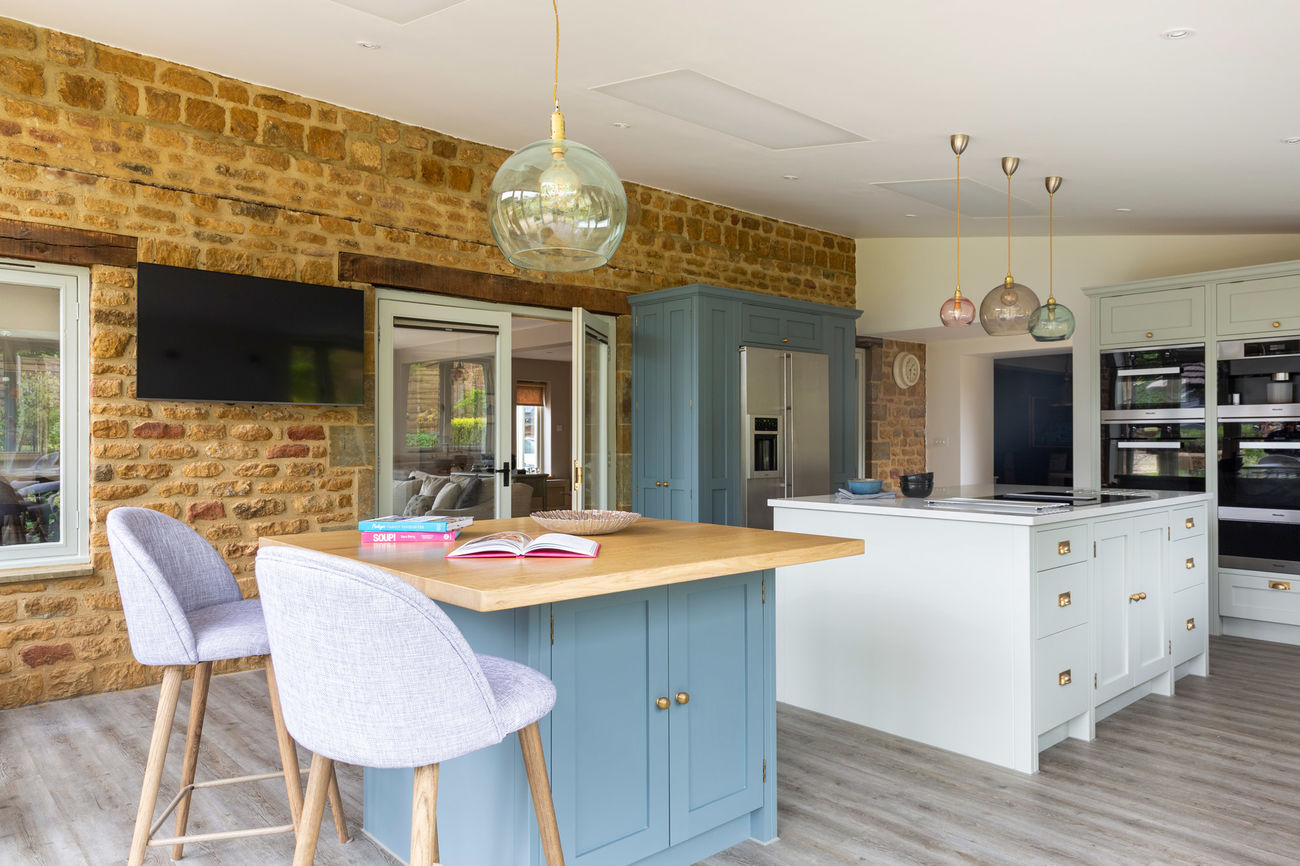

The LAVA® FRAME infrared heater represents a new dimension in room heating: modern, elegant and uncompromisingly efficient. This infrared heater was specially developed for flush installation in ceilings and walls - and blends almost invisibly into the architecture. The result is a clear, minimalist room concept without visible radiators - ideal for sophisticated living spaces, hotels, doctors' surgeries or stylish offices.

Technically, the LAVA® FRAME relies on proven ETHERMA infrared technology. The radiant heat generated warms people, walls and furniture directly - without any detour via the room air. This ensures a pleasant, dust-free room climate, which is particularly appreciated by allergy sufferers and asthmatics. At the same time, the LAVA® FRAME is extremely energy-efficient and sustainable - in line with a CO₂-reduced heating concept.

Whether in new buildings with a minimalist design, in high-quality commercial buildings or in the renovation of design-oriented living concepts - the LAVA® FRAME offers maximum architectural freedom. Thanks to its low installation depth of just 55 mm, it can be easily integrated into suspended ceilings or drywalls. The specially developed surface with a high radiant effect ensures that the heat emitted is distributed noticeably efficiently and evenly throughout the room.

It can be controlled either via the ETHERMA SMARTBOX and the SMARTCUBE using an app - ideal for smart home environments - or via conventional thermostats, depending on the area of application and installation specifications.

For electricians, architects and specialist planners, LAVA® FRAME is not only an elegant heating solution, but also a practical installation. The installation dimensions are clearly defined, integration into control systems is flexible and the installation height allows integration into almost any ceiling system or drywall construction concept. The LAVA® FRAME is therefore ideal for individual projects in upmarket residential buildings as well as for hotel rooms, restaurants, representative rooms or modern office environments.

ETHERMA eWARRANTY Your heating. Your safety.



With ETHERMA eWARRANTY, you can extend the warranty on your electric heater to up to 30 years - free of charge and without any effort. Simply register online and sit back and relax.

  • Flush installation: Invisible integration into walls and ceilings for a tidy room feel (plasterboard, concrete & wood) incl. installation frame with Easyclick

    Highest design standards: Puristic, frameless appearance - ideal for modern interior design.

    Efficient infrared heat: direct radiation with high energy yield - without air turbulence.

    Smart home ready: Can be controlled via app (SMARTBOX & SMARTCUBE) or wall thermostat.

    Fast response time: noticeably pleasant warmth after just a few minutes.

    Maintenance-free & durable: "Made in Austria" quality for many years of worry-free use.

    Safe & robust: IP X4 protection rating - also suitable for damp rooms such as bathrooms or guest WCs.

Voltage: 230 V
Output: 350, 500, 740, 750 W
Surface temperature: max. 120 °C at standard internal temp.
Surface: Structured surfaces
Frame: Steel housing, white RAL 9016
Device/Installation depth: 22 / 75 mm
IP rating: IP 21
Connection: 1 m, 3 x 1,5 mm², no plug
Mounting: Suitable for wall and ceiling installation
Certification: TÜV

The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.

The following is a guide:

20-45 W/m² Low energy and passive housing

50-70 W/m² Well insulated housing

75-95 W/m² Moderately insulated housing

100-120 W/m² Poorly insulated housing

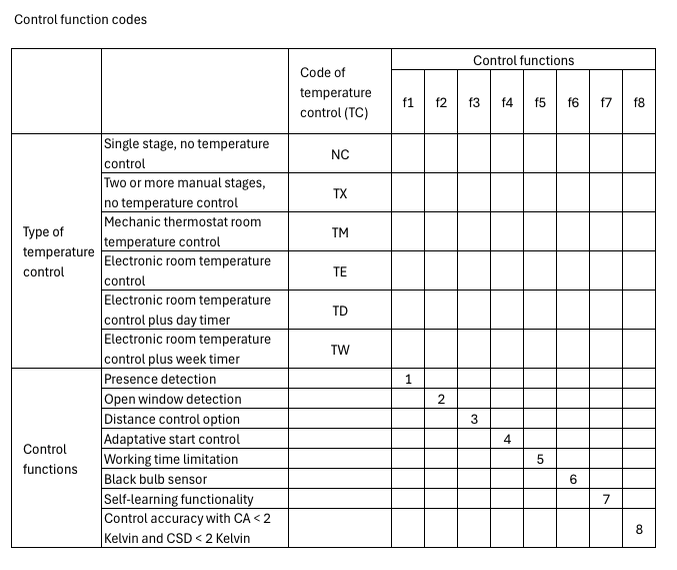

This product is a fixed, electric single-room heater with a nominal heat output of more than 250W; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2, f4 or f8), the following combinations are possible: TW (f2), TW (f3), TW (f8)

Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
