Stainless steel finned tube radiators for industry, agriculture & and outdoor areas
Safety is paramount in all production areas - this is achieved on the one hand through compliance with trouble-free production processes, and on the other hand through ensuring workplace safety for employees - as well as their comfort.
CREATE WARMTH AREAS.
Particularly in industrial premises, it is often not possible to heat an entire area - zone heating with infrared- and radiant heat systems from ETHERMA, which distribute comfortable warmth and only heat the areas which need it, provide an efficient and economical solution.
Typical areas of application at a glance
Finned tube radiators are often used in technically demanding or unheated parts of buildings. These include, among others:
-
Horticulture & greenhouses: protection from frost, promotion of plant growth
Pumping stations & technical rooms: Ensuring frost-free operating conditions
Construction containers & warehouses: Temporary heating on construction sites
Animal stables & agriculture: Robust heat source in damp stables
Basements & ancillary rooms in the private sector: Heating without complex installation
Switch cabinets & machine rooms: Local heating of sensitive devices
Thanks to protection class IP66/67, these radiators are also suitable for outdoor
areas or areas at risk of splashing water - e.g. open halls, washing areas or
unprotected storage zones.
Advantages over classic radiators
-
Robust construction: Insensitive to dust, water & mechanical influences
Simple installation: floor or wall mounting possible, even retrospectively
Efficient heat dissipation: Large surface area thanks to ribbed structure
Durable material: Stainless steel (1.4512) for industrial requirements
High flexibility: Use in temporary, mobile or stationary areas
Environmentally friendly: Electrically powered - ideal for PV use and CO₂-free heat

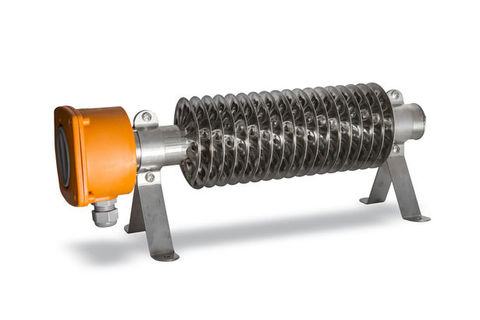

FINNED PIPE RADIATORS MADE FROM STAINLESS STEEL
ETHERMA finned pipe radiators are used in industrial settings (even in EX areas) and retail trade to protect sensitive equipment from frost and humidity, such as in greenhouses, crane operator's cabs, construction vehicles, and pumping stations. For protecting sensitive equipment from frost and as heating in harsh operating conditions. Optimal heat output thanks to large fin surface area. The integrated technical ceramic heating unit ensures good heat distribution.
Benefits of this product
-
Robust, dust and water-proof
-
Corrosion resistance - high-grade stainless steel
-
ET-RDA steplessly adjustable
-
Good heat distribution
-
Wall and ceiling installation
Technical data
| Voltage: | 230 V and/or 400 V 3 (N) |
| Oberfläche: | Stainless steel |
| Surface temperature: | max. 185°C (RRU, RDA) |
| Connection cable: | Fixed wiring or plug; connection cable not included in the scope of delivery |
| Rib diameter: | 120 mm |
| IP rating: | IP 66/67 |
| Certification: | KEMA - KEUR |
Ecodesign
ETHERMA ET-RRU
This product is a stationary, electric single-room heater with a rated heat output of more than 250W; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2, f4 or f8), the following combinations are possible: TW (f2), TW (f3), TW (f8)
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
