UNDERFLOOR HEATING Product overview and technical data.

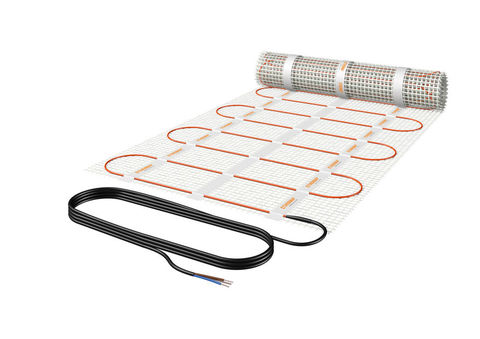

ETHERMA D-24V - The netted heating mat for heating baths and wellness loungers

The ETHERMA D the ideal solution - especially for baths and wellness areas. Examples include heated loungers, benches, steam showers and shower trays. This netted heating mat has a rated voltage of 24 V and is thus suitable for controlling the temperature of floors, for heating rooms or for sealing off the cold in walls in protected areas.

  • For heating showers, wellness loungers and for use in protected areas

  • Only 2.7mm thin

  • Self-adhesive netted heating mat

  • Only one connector cable

  • Very weak magnetic field <25 nT

  • Flat and level, torsion-free laying thanks to stitching technology

  • Custom-made special orders and sizes

Rated output: 24 V
Output: 160, 200, 250 W/m²
Temperature-resistant: up to 90°C
Heating conductor thickness: 2,7 mm
Production widths: 50 cm
Mesh structure: 12 x 12 mm, self-adhesive
Protection rating: IP X7
Connection line: 4 m; 2 x 1,5 mm² + Schutzgeflecht
System structure: CE compliant
