LAVA® INFRARED HEATING Product overview and technical data.

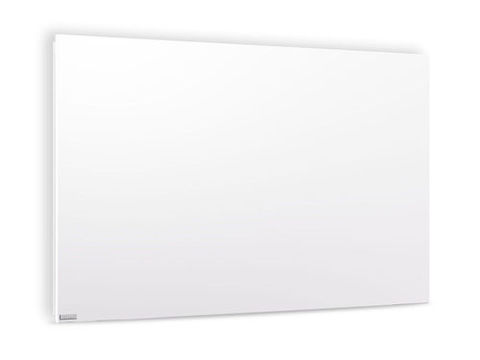

LAVA® STEEL 2.0 – THE ENTRY MODEL

LAVA® STEEL 2.0 is the ideal entry model. Its smooth, radiation-free surface enlarges its radiation surface, and hence its efficacy. Available in pure white.

  • Radiation-optimised infrared heating lacquer

  • Optimised insulation reduces convection component

  • Large infrared radiation surface

  • Maintenance-free and magnetic field-free

  • Plug & Play connection system for easy individual control

  • Horizontal and vertical wall mountable

Voltage: 230 V

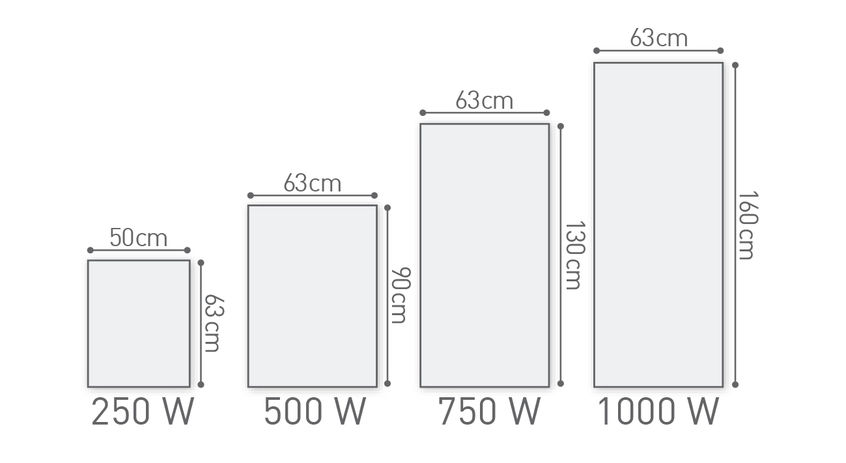

Output: 250 - 1000 W
Surface temperature: max. 95 °C at standard internal temp.
Surface: Smooth, radiation-optimised surface, White RAL 9016
Device/Installation depth: 26/57 mm
Protection rating: IP X4
Protection class: I
Connection: Patch cord 1 m
Wall mounting: horizontally or vertically
Warranty: 5 years
Certification: TÜV

The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.

The following is a guide:

20-45 W/m² Low energy and passive housing

50-70 W/m² Well insulated housing

75-95 W/m² Moderately insulated housing

100-120 W/m² Poorly insulated housing
