LAVA® INFRARED HEATING Product overview and technical data.

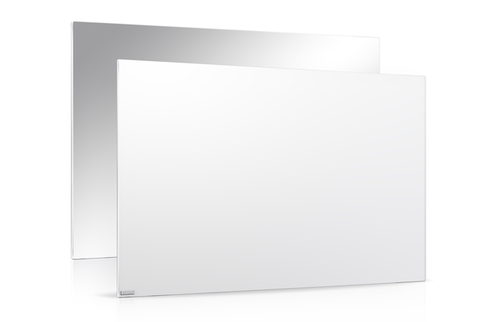

LAVA® LITE - The extra thin infrared heater

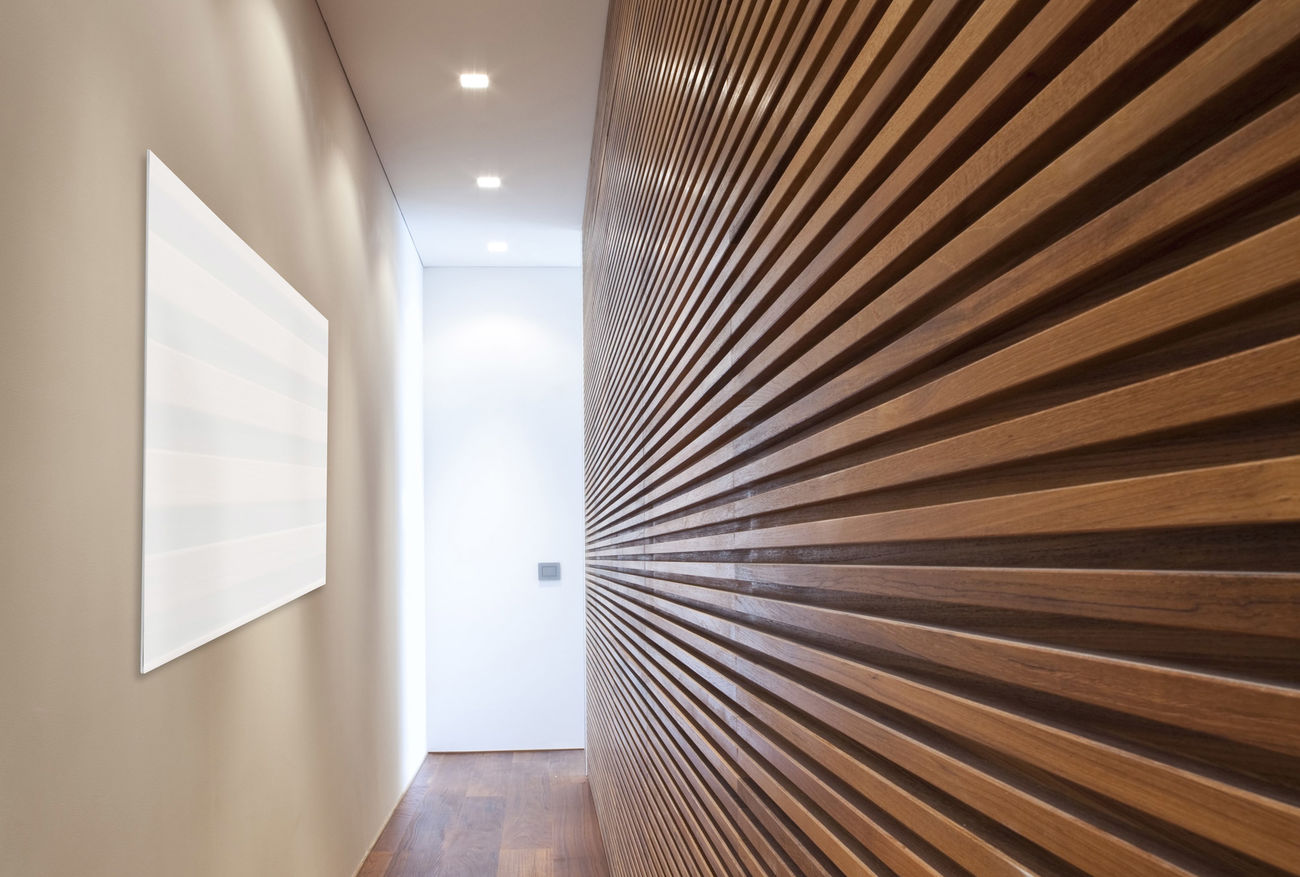

The extra-thin LAVA® LITE infrared heater is impressive thanks to its efficiency. Despite its 6 mm thick safety glass, the infrared heater is only 33 mm deep including its mounting rails, making it ideal for wall mounting - even in smaller spaces such as hallways or stairwells. Its glass surface is a very good radiation emitter and guarantees optimal heat radiation to the front. Its frameless construction and extremely shallow depth allow this infrared heater to fit harmoniously into the room.

  • Extra-thin construction

  • Very shallow installation depth

  • Frameless infinity design

  • Highest safety against breakage and overheating

  • No service or maintenance required

  • Without magnetic field

  • Horizontal and vertical mountable

Voltage: 230 V
Power: 240 - 900 W
Surface temperature: Max. 95 °C at standard internal temp.
Surface: 6 mm ESG safety glass
Device/Installation depth: 13/33 mm
IP Rating: IP 55
Connection cable: 1 m, 3 x 1.5 mm² without plug
Wall mounting: Horizontally or vertically
Warranty: 5 years

The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.

The following is a guide:

20-45 W/m² Low energy and passive housing

50-70 W/m² Well insulated housing

75-95 W/m² Moderately insulated housing

100-120 W/m² Poorly insulated housing
