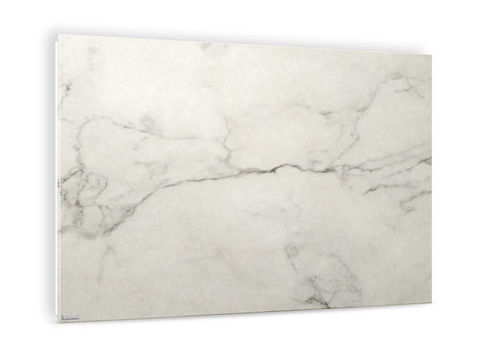

LAVA® CERAMIC 2.0 – TIMELESS AESTHETICS
LAVA® CERAMIC stands for timeless, elegant infrared warmth and is available in three colours. Ceramics are an excellent emitter of radiation, and are also highly resistant and easy to care for.
Benefits of this product
Ceramic is an excellent radiation emitter
Optimised insulation reduces convection component
Large infrared radiation surface
Maintenance-free and magnetic field-free
Plug & Play connection system for easy individual control
Heat storage up to 1 hour
Horizontal and vertical wall mountable
Technical details
| Voltage: | 230 V |
| Output: | 250 - 1000 W |
| Surface temperature: | max. 95 °C at standard internal temp. |
| Surface: | 6 mm special ceramics |
| Device/Installation depth: | 30/61 mm |
| Protection rating: | IP X4 |
| Protection class: | I |
| Connection: | Patch cord 1 m |
| Wall mounting: | horizontally or vertically |
| Warranty: | 5 years |
| Certification: | TÜV |

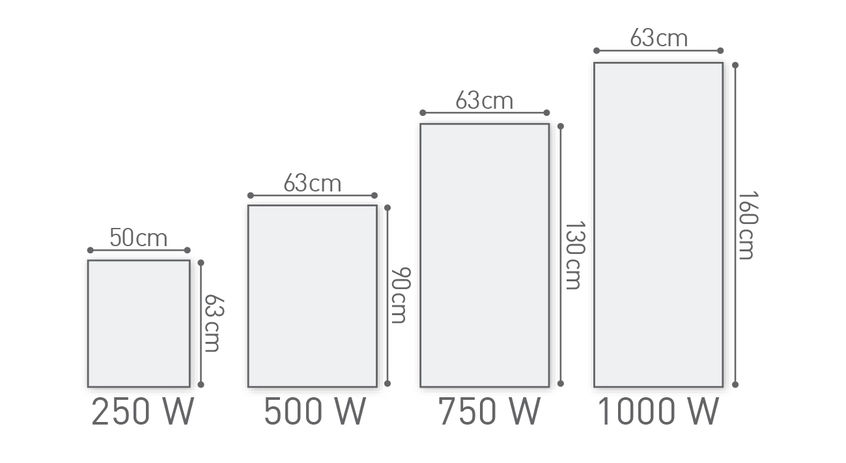

Dimensions
Dimensions
The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.
The following is a guide:
20-45 W/m² Low energy and passive housing
50-70 W/m² Well insulated housing
75-95 W/m² Moderately insulated housing
100-120 W/m² Poorly insulated housing
