LAVA® BATH 2.0 – Infrared heater with a towel holder.
The LAVA® BATH 2.0 is the perfect heat source for your bathroom. Its thick ESG safety glass, corian or porcelain surface material and 2 temperature regulators in all panels ensure safe use at all times. This innovative technology makes its surfaces a very effective radiation emitter. In conjunction with the even heat distribution on the surface, the optimally insulated rear guarantees a high radiation efficiency and thus the maximum infrared heat radiation to the front of the room - once switched on, the surface is heated to a constant 80°C and provides snug warmth within the shortest time. And thanks to the integrated towel rail, your towels are also pleasantly warm.
The frameless construction creates the modern design. Four surfaces (STEEL / GLASS / STONE / CORIAN) and up to five outputs are available as you want it. In addition, up to two further LAVA® Halti units can be connected. The practical Plug & Play box on the rear of all LAVA® 2.0 models makes it easy to install a controller, whether directly on the device, wirelessly or using a wired controller.
Benefits of this product
-
One towel holder LAVA® Halti included - up to 2 more available as accessories
-
High radiant heating effect
-
Frameless infinity design
-
Plug & Play connection system for easy individual control
-
Various thermostat options as accessories
-
Highest safety against breakage and overheating
-
Easy installation - vertical wall mounting only
-
Maintence free and magnetic field free
Technical details
| Voltage: | 230 V |
| Output: | 350 - 700 W |
| Surface temp.: | max. 80 °C at standard internal temp. |
| Surface: | 6 mm steel sheet, ESG safety glass, porcelain stone or 12 mm corian plate |
| Device/Installation depth: | Steel sheet 26/57 mm, glass & porcelain stone 30/61 mm, corian 36/67 mm |
| IP rating: | IP X4 |
| Protection class: | I |
| Connection cable: | Patch cord 1 m |
| Mounting: | only vertical wall mounting |
| Warrenty: | 5 years |
| Certification: | CE compliant / TÜV for steel & glass |

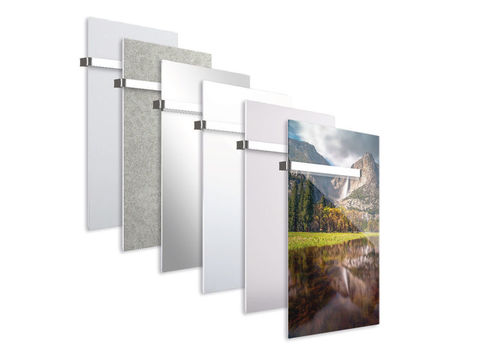

Designs

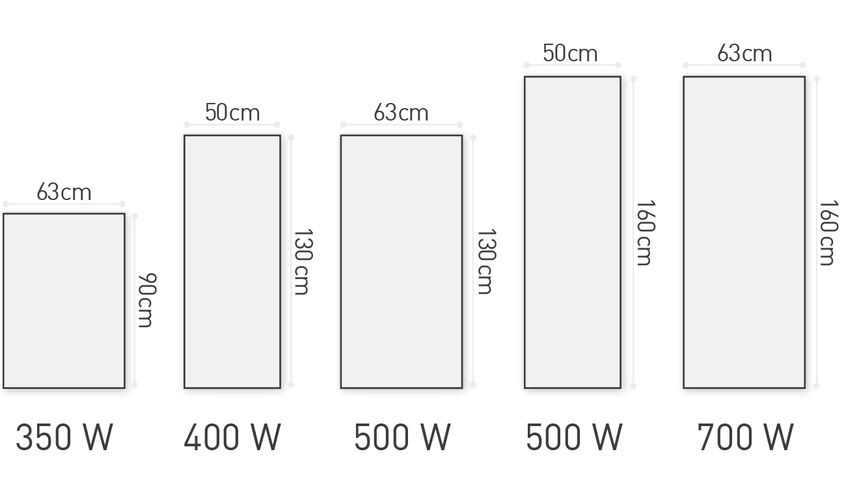

Dimensions
The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.
The following is a guide:
20-45 W/m² Low energy and passive housing
50-70 W/m² Well insulated housing
75-95 W/m² Moderately insulated housing
100-120 W/m² Poorly insulated housing
Download
