LAVA® INFRARED HEATING Product overview and technical data.

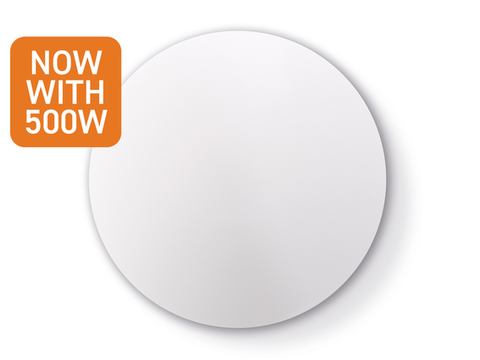

LAVA® ARCUS infrared heater - The round infrared heater for walls and ceilings.

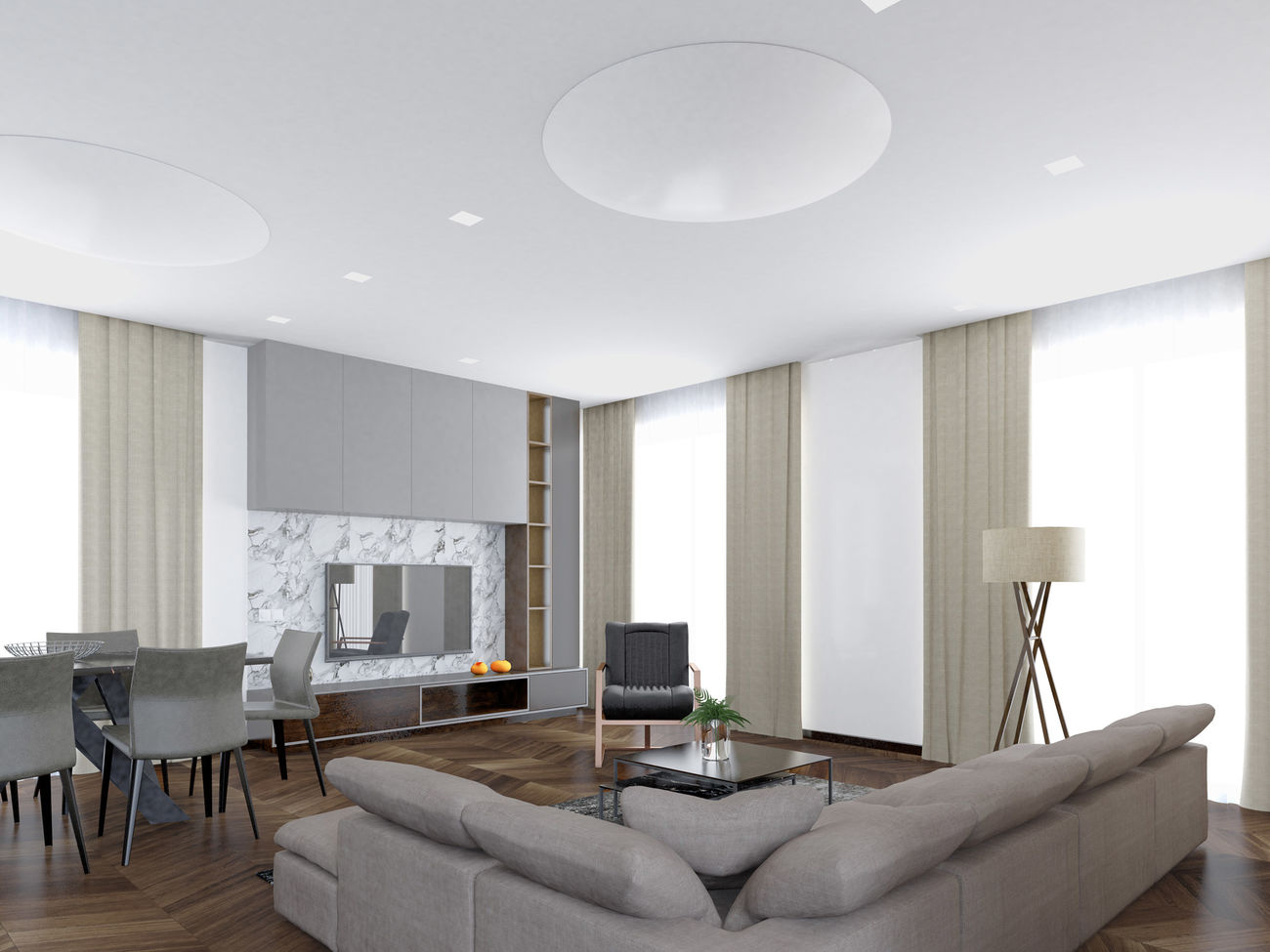

LAVA® ARCUS is a round infrared heater with a diameter of 74.5 cm. It is suitable for heating living rooms as well as offices and can be mounted on the wall or ceiling. Thanks to its frameless, discreet design, it fits harmoniously into any room concept. Due to the round, convex shape, the infrared heater achieves maximum radiation coverage in the room and thus ensures an even heat distribution - this creates a pleasant, comfortable indoor climate. Suitable as full area heating or also for particular heating zones.

  • Suitable for wall and ceiling installation

  • Maximum beam angle thanks to its convex shape

  • Frameless infinity design

  • Large infrared emitting surface

  • No service or maintenance required

  • Without magnetic field

Voltage: 230 V
Power: 500 W
Surface temperature: Ceiling mounting max. 120 °C / Wall mounting max. 95 °C
Surface: Structured surfaces
Colour: Traffic white RAL 9016
Device/Installation depth: 60/ 80 mm
IP Rating: IP 21
Connection cable (no plug): 1 m, 3 x 1.5 mm² without plug
Warranty: 5 years
Certification: CE compliant

The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.

The following is a guide:

20-45 W/m² Low energy and passive housing

50-70 W/m² Well insulated housing

75-95 W/m² Moderately insulated housing

100-120 W/m² Poorly insulated housing
