ETHERMA SPH – COMFORTABLE MIRROR HEATING

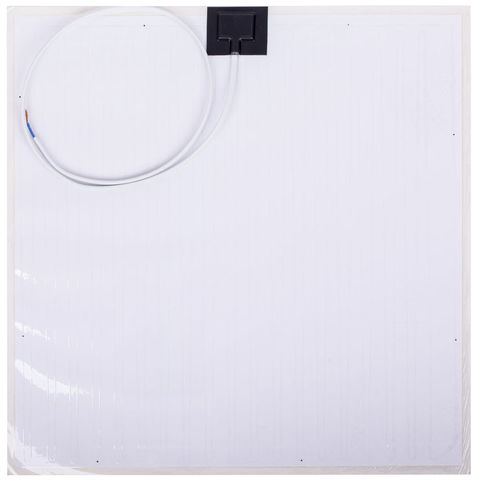

Finally, a clear view! SPH mirror heating reliably prevents mirror fogging in small bathrooms, when filling the bath tub with hot water, or after a shower. The mirror heating film is permanently bonded to the back of the mirror. The unit can be switched on and off together with the light. ETHERMA mirror heating can also be made to measure.
Benefits of this product
-
Simple installation thanks to self-adhesive film
-
Water-resistant and chemically-resistant insulation
-
Rapid response time
-
Low energy consumption
-
Special sizes on request
Technical data
| Voltage: | 230 V |
| Output: | 55-110 W |
| Temperature: | about 50 °C |
| Structure: | Chemically resistant heating film |
| IP rating: | IP X4 |
| IEC Protection class: | II, protective insulation |
| Connection line: | 2 m, 2 x 1.5 mm², Teflon-insulated |
| Certification: | EC compliant |
Installation
The mirror heating film, produced by ETHERMA, is permanently bonded to the back of the mirror. The unit can be switched on and off together with the light.
