DIRECT HEATING DEVICES

DIRECT HEATING DEVICES For bathrooms and living rooms.

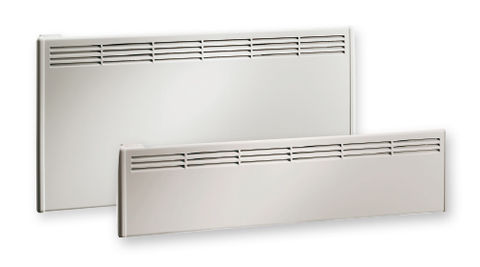

ETHERMA CP and CL ECO – CONVECTOR PANEL AND CONVECTOR STRIP

The beautifully designed CP eco and CL eco convectors with front air outlet are used for fast and efficient heating of living spaces. These heating devices have an electronic temperature control and an On-Off switch, and are supplied as standard with a plug. The convector heaters can be controlled via Wi-Fi using a free app and comply with ecodesign guidelines. The control is located in the lower right corner of the unit for a more accurate room temperature display. As an additional feature, the controller has Bluetooth for local control of other devices without Wi-Fi. A junction box for direct connection of the heating device is available as an accessory (KB-200).

  • Suitable for bathrooms

  • Low heating element temperature (approx. 90°C)
    Reduced dust transport

  • Efficient air warming thanks to large convection surfaces

  • Heat released towards the front

  • Ecodesign guidelines compliant

  • Wi-Fi control also available via tablet and smartphone

  • Temperature projection on the floor

  • Week and day timer

  • Temperature drop detection

Voltage: 230 V
Output: 500 - 2000 W
Temperature range: 5 - 30°C
Colour Pure white RAL 9010
Device depth: 85 mm
Protection class: II
IP rating: IP X4
Connection: Connector cable 1,2 m
Certification: NEMKO

The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.


The following is a guide:
30-55 W/m²    Low energy and passive house
60-80 W/m²    Well insulated housing
85-105 W/m²    Moderately insulated housing
110-130 W/m²    Poorly insulated housing
