PIPE TRACE HEATING Product overview and technical data

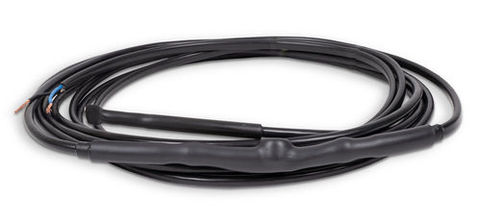

ETHERMA ICESTOP LIGHT – Plug & play heating loop with thermostat, 24 V

The ETHERMA LIGHT is the 24 V version, and protects pipes from ice and subsequent damage. ICESTOP LIGHT is a Plug & Play heating cable with thermostat and a constant power output of approx. 17 W/m. The thermostat is 100 % protected against humidity and switches frost protection with temperatures below + 3°C and off again above + 9 °C. ONLY SUITABLE FOR USE IN METAL PIPELINES.



  • Integrated thermostat

  • Constant output characteristics

  • Moisture-proof

  • UV resistant

Voltage: 24 V
Power at 5°C: approx. 17 W/m
Min. installation temperature: -15°C
On/off temperature: +3°C, +9°C
Min. bending radius: 5 d
Diameter: 7 mm
IP rating: IP X7
Connection cable: 2 m; 2 x 1,0 mm²
Certification: CE compliant
  • Frost protection for pipes

  • Frost protection for troughs

Only suitable for metallic pipes.  For applications with plastic pipes, please use ETHERMA ICESTOP TRACE. The heating cable is also available in a Version mit 230 V.
