ETHERMA eFLOOR SCREED ELECTRIC FLOOR HEATING IN THE ESTRICH - COMFORT THAT YOU CAN FEEL BUT NOT SEE
Modern living and working environments require intelligent, energy-efficient heating solutions that combine comfort, sustainability and economy. Electric underfloor heating in screed is considered one of the most elegant and efficient methods of room heating - invisible, space-saving and particularly even in terms of heat distribution. With ETHERMA eFLOOR SCREED, you are opting for a future-proof heating system that is ideal for new builds, renovations and low-energy houses.
The great advantage of electric underfloor heating in screed is the thermal inertia and even distribution of heat. Embedded in the screed, the system ensures a pleasant room climate without disruptive radiators detracting from the room design. Thanks to the direct proximity to the floor covering, the heat is efficiently transferred to the room - ideal for barrier-free, minimalist or architecturally sophisticated living concepts.
Whether in the living room, bathroom, office, conservatory or even in the commercial sector: with the eFLOOR SCREED from ETHERMA, you can rely on tested brand quality that meets the highest demands. The heating mat is available in various output levels (e.g. 60, 80, 100 or 150 W/m²) and is therefore suitable for room temperature control as well as full heating - depending on the insulation and structural conditions. In addition, it can be perfectly combined with photovoltaic systems, which enables the use of self-generated solar power for room heating and can therefore significantly reduce operating costs.
Another plus point: the eFLOOR SCREED is completely PFAS-free and particularly low in magnetic fields - a real benefit for the environment and health. The robust design with high-quality protective braiding even allows safe use in wet areas such as bathrooms or washrooms, without any risk to material or safety.
For architects, planners and electricians, the eFLOOR SCREED offers a high degree of planning freedom thanks to variable formats and customized designs. This means that even unusual room geometries or special solutions can be realized without any problems. Installation takes place directly in the flowing or damp screed - ideal for low installation heights or energy-efficient renovation.

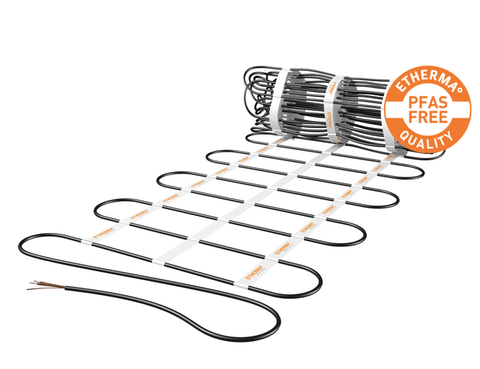

ETHERMA eFLOOR SCREED COMFORTABLE HEAT DIRECTLY FROM THE SCREED
-
40 to 240 W/m²
-
Very low magnetic field < 25 nT
-
Only one connector cable
-
Ideal heating system for heating low energy and passive houses
-
Various sizes and outputs enable easy planning and simple installation
Voltage: | 230 V |
Output: | 60, 80, 100, 150 W/m² |
Output on request: | 40, 120, 175, 200, 240 W/m² |
Temp. resistant: | up to 105°C |
Min. bending radius: | 5d |
IP rating: | IP X7 |
Protection: | RCD 30 mA |
Connection: | 4 m; 2 x 1.5(2.5) mm² + protective braid |
Certification: | EC compliant |
Take advantage of our free offer, planning and ordering service. The ETHERMA technical team will assist you to calculate your heating needs, as well as size and plan your electrical underfloor heating. In addition, we will help you to select the best electricity tariff based on the activation times of each EVU, or we will provide you with a suitable solution in combination with a PV system.

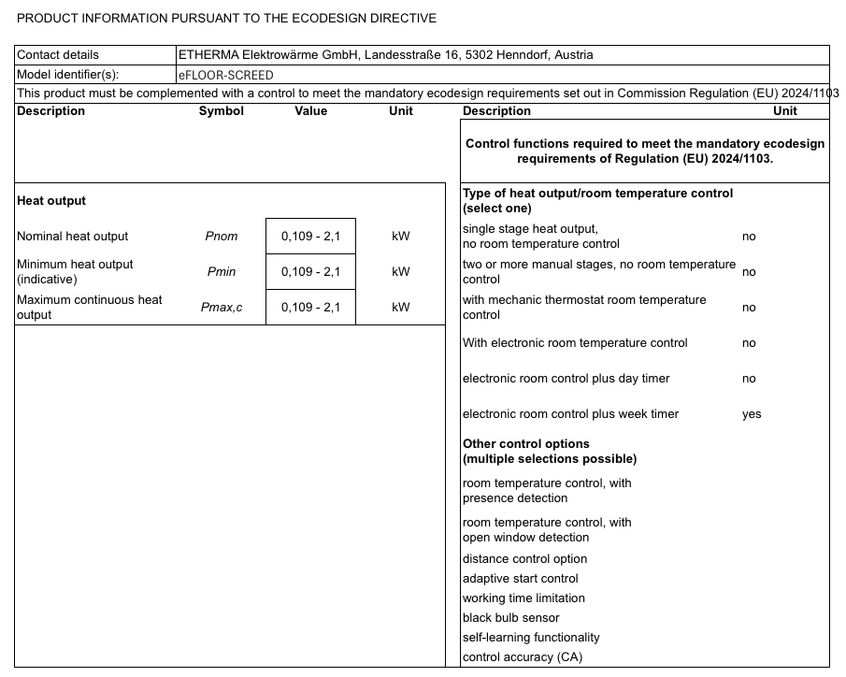

This product is a fixed, electric underfloor single-room heating appliance; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2 or f4), the following combinations are possible: TW (f2), TW (f3), TW (f4), TW (f8)
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
ALTERNATIVE FOR FREE LAYING: ETHERMA eFLOOR CABLE SCREED
For particularly creative floor plans, unusual room shapes or when maximum flexibility is required during installation, ETHERMA offers an excellent alternative with the eFLOOR CABLE SCREED. This free heating loop for screed installation allows individual adjustment of the installation distance - and thus precise adjustment of the heating output to the respective heating requirements of the room.
The eFLOOR CABLE SCREED is available in three output levels (10, 15 or 20 W/m), can be flexibly installed in concrete or flowing screed and is also PFAS-free, IP X7-protected and resistant to high temperatures up to 105 °C. With its robust structure and simple installation using just one connection cable, this system is ideal for living spaces with complex floor plans, renovation projects or for building owners who want maximum design freedom.

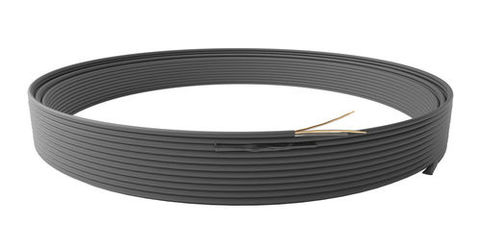

ETHERMA eFLOOR CABLE SCREED THE FLEXIBLE ALTERNATIVE TO HEATING MATS
-
Flexible installation thanks to freely selectable installation spacing
Simple installation with just one connection cable - factory-fitted, optionally made to measure
PFAS-free & environmentally friendly - for healthy living and sustainable construction
High level of safety thanks to protection class IP X7 and aluminum protective braiding
Customization possible - for maximum planning security
Robust & durable - temperature-resistant up to 105 °C
Ideal for screed systems - suitable for concrete and flowing screed
Voltage: | 230 V |
Output: | 10, 15, 20 W/m |
Temp. resistant: | up tp 105°C |
Thickness: | ca. 7 mm |
Min. bending radius: | 5d |
IP rating: | IP X7 |
Protection: | RCD 30 mA |
Connection: | 2 x 1.5(2.5) mm² + protective braid |
Certification: | EC compliant |

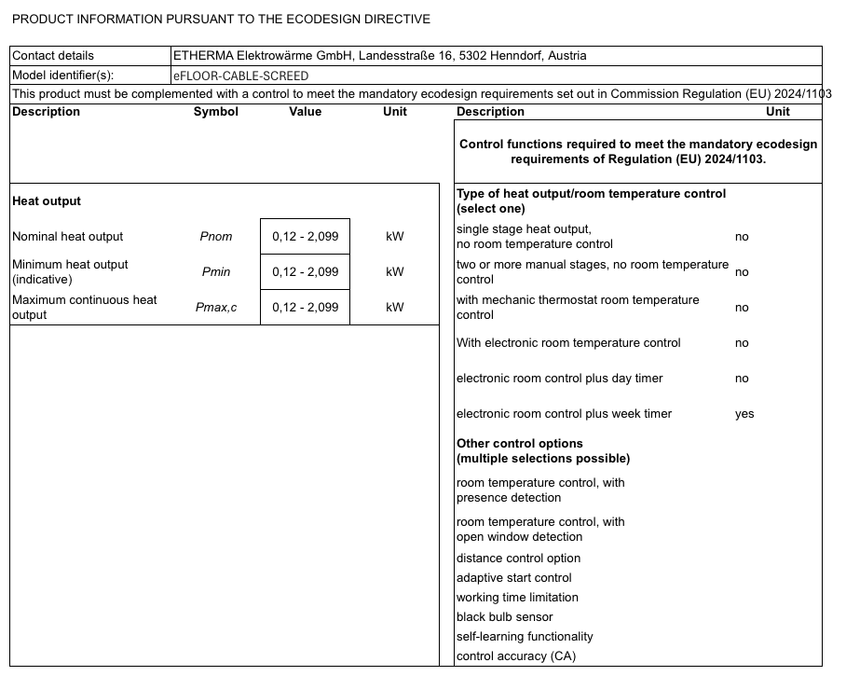

This product is a fixed, electric underfloor single-room heating appliance; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2 or f4), the following combinations are possible: TW (f2), TW (f3), TW (f4), TW (f8)
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
"ECODESIGN-READY" BECOMES "ECODESIGN-COMPLIANT"
Your eFLOOR heating mat already meets the requirements of the new Ecodesign Directive (EU) 2024/1103 - all you need for full compliance is the right thermostat:
CASE STUDY
INGENIOUS WARMTH FOR A YOUNG FAMILY COST-EFFECTIVE, CLEAN, COMFORTABLE AND INTELLIGENT – THIS IS THE WAY TO HEAT TODAY
THE INITIAL SITUATION
A young family wanted to set up the home of their dreams in a modern new-build in Salzburg. For this, they needed a clean, comfortable and cost-effective heating solution.
THE ETHERMA SOLUTION
Independence from oil and gas was very important to the family, and they also wanted a healthy room climate as free from dust as possible, as well as a maintenance-free heating system. The ideal place for ETHERMA screed heating in combination with a PV system and modern home automation.
