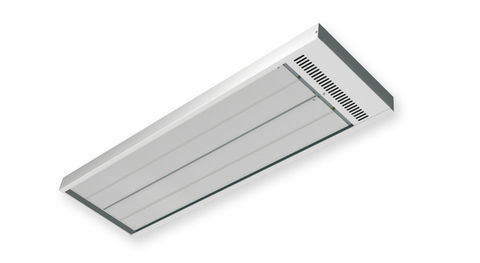

ETHERMA EZ – CEILING HEATER

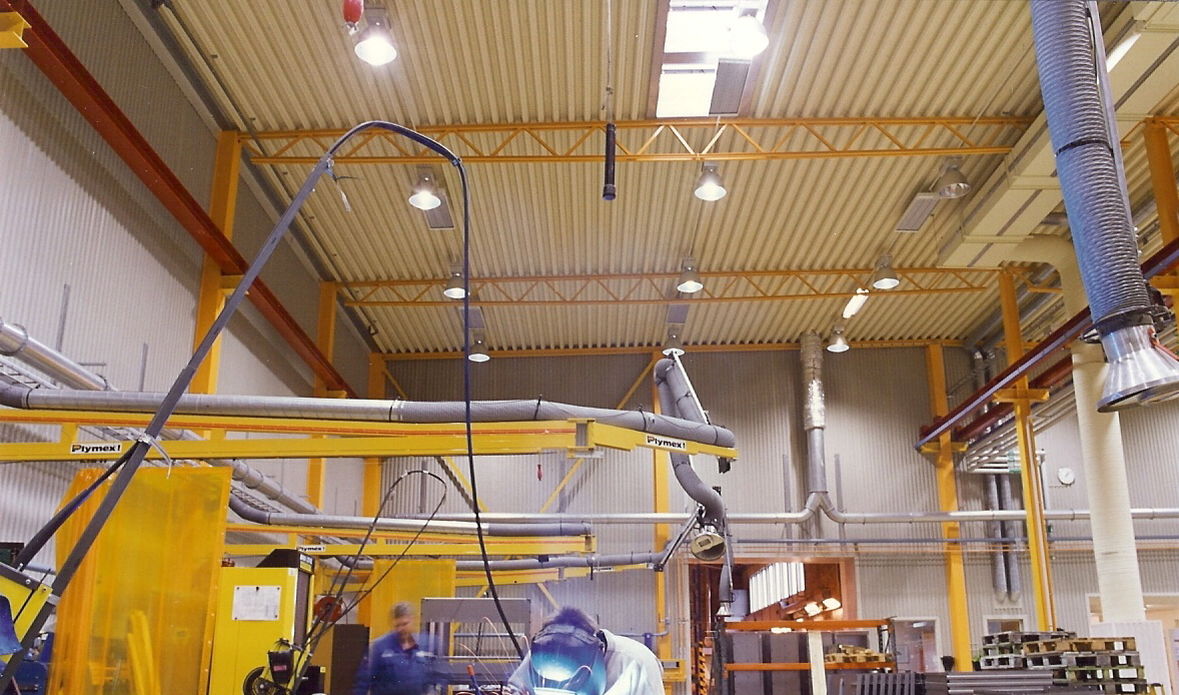

EZ ceiling heaters are dark radiators, meaning that they emit no light. These were developed as full and auxiliary heating as well as to provide protection against cold drafts from windows in department stores, assembly halls and industrial buildings, etc. EZ radiators generate a uniform, pleasant warmth, enabling a variety of comfort areas to be set up using spot and area heaters.
Benefits of this product
Full area heating or zone heating
Hygienic indoor climate
Dark emitter
Rust-resistant housing
Straightforward installation
Surface structure optimises radiation
Technical details
| Voltage: | 230 V, 400 V |
| Power: | 800 - 3600 W |
| Max. element temperature: | 290°C |
| Colour: | Traffic white RAL 9016 |
| Installation height: | 2,5 - 4 m |
| Protection rating: | IP 44 |
| Fixed connection | I |
| Certification: | EC-compliant |
Installation height
Installation height:
1. Type of facility - business space, warehouse, etc.
2. Type of heating - full heating, area heating
3. Environment/building insulation
4. Height, installation height
5. Installation: on the wall or ceiling
The output, use and application of the ceiling heaters determine the different designs and performance of the heating units. The installation height, surroundings and desired type of heating primarily determine the choice of the product.
