UNDERFLOOR HEATING Product overview and technical data.

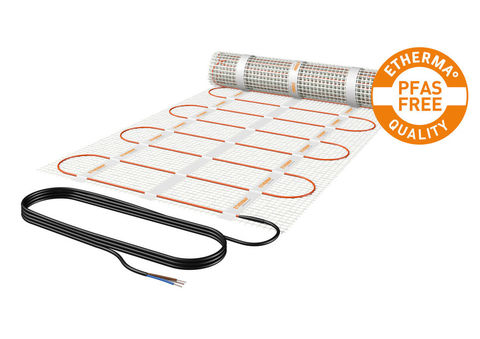

ETHERMA eFLOOR PRO THE PAVING-FREE MESH HEATING MAT FOR TILED AND STONE FLOORS

Specially developed for tiles and stone floors

The eFLOOR PRO mesh heating mat has been specially developed for the special requirements under tiles and stone floors to ensure even and comfortable temperatures. The eFLOOR PRO ensures that your floors are always pleasantly warm, regardless of the season. It creates an incomparable feel-good climate by keeping the floor at the optimum temperature and at the same time contributing to room heating.



Comfort and warmth for your rooms

The mesh heating mat offers maximum comfort, especially in bathrooms, kitchens or conservatories, as it provides pleasant warmth even in cold outside temperatures. It can also be used on walls to prevent cold bridges and create a comfortable indoor climate. Thanks to its versatility, the eFLOOR PRO is not only suitable for new buildings, but is also ideal for renovations or modernizations.

With the eFLOOR PRO, you not only enjoy warm floors, but also an energy-efficient solution that can be perfectly integrated into modern living concepts. It offers you the flexibility to heat rooms in a targeted and sustainable way, adding a touch of luxury and comfort to your home.



Versatility in performance and customization

Thanks to its particularly flat design with an overall height of just 3.0 mm, the eFLOOR PRO is perfect for renovations and retrofitting. The mesh heating mat is already pre-assembled ready for installation and its dipole design with just one connection cable makes it easy to install in the tile adhesive bed. The robust design ensures high stability and durability.

The eFLOOR PRO is available as standard in five power levels from 60 W/m² to 200 W/m². We also offer customized solutions - mesh heating mats in individual sizes, voltages, outputs and shapes, perfectly tailored to your needs.

PFAS-FREE for your health and our environment

PFAS chemicals are known for their water, grease and dirt-repellent properties. However, they are also extremely durable and can have a negative impact on the environment. At ETHERMA, we focus on sustainability: many of our products, including the eFLOOR PRO, are already produced PFAS-free - without compromising on durability. In this way, we not only protect your health, but also the environment.

  • PFAS-free

     Only 3.8 mm thin

    Also suitable as wall heating

    Self-adhesive mesh heating mat

    One connection cable

    Very low magnetic field < 25 nT

    Flat, torsion-free support

    Special services and sizes made to measure

    Connection cable made to measure possible

Voltage: 230 V
Output: 60, 80, 100, 150, 200 W/m²
Tempr. resistant: up tp 90°C
Mat hight: 3.8 mm
Mat width: 50 cm
Net: 10x12 mm self-adhesive
IP protection: IP X7
Safety measure: RCD 30 mA
Connection cable: 4 m; 2 x 1.0 mm² + protective braid

eFLOOR PRO 60 W/m2

Temperature control of the floor or main heating in low-energy and passive-energy houses

eFLOOR PRO 100 W/m2

Temperature control of the floor or main heating in low-energy houses.

eFLOOR PRO 150 W/m2

As full heating with standard insulation in kitchens, bathrooms and anterooms.

eFLOOR PRO 200 W/m2

For heating a room without or with poor insulation; bathrooms, sauna rooms, wellness facilities, conservatories and where a short heating time is required.


The values given are guidelines.

This product is a fixed, electric underfloor single-room heating appliance; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2 or f4), the following combinations are possible: TW (f2), TW (f3), TW (f4), TW (f8)



Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.

"Ecodesign-ready" becomes "ecodesign-compliant"

Your eFLOOR heating mat already meets the requirements of the new Ecodesign Directive (EU) 2024/1103 - all you need for full compliance is the right thermostat:



ETHERMA eTOUCH PRO

Smart thermostat with touchscreen, app & WLAN
✓ Control via smartphone (ETHERMA app)
✓ Weekly program, window open detection, adaptive heating behavior
✓ Ideal for those who want comfort & state-of-the-art technology



ETHERMA eTOUCH HYBRID

Design thermostat with touch display and two relay outputs
✓ For mixed heating systems (e.g. eFLOOR + infrared heating)
✓ Touch operation directly on the device
✓ Integrated weekly program & additional functions



ETHERMA eBASIC

Classic rotary control with Bluetooth
✓ Simple operation & quick adjustment
✓ Control via app possible
✓ Ideal for smaller rooms or quick retrofitting

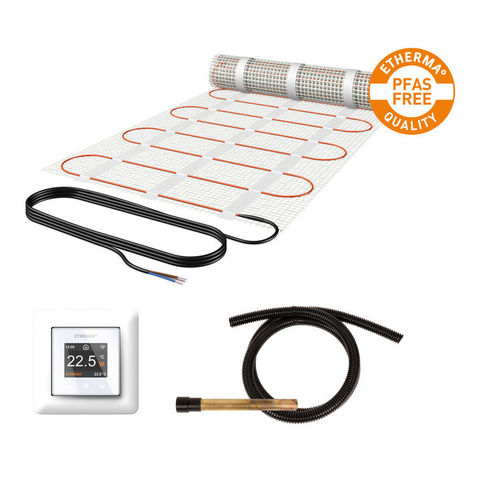

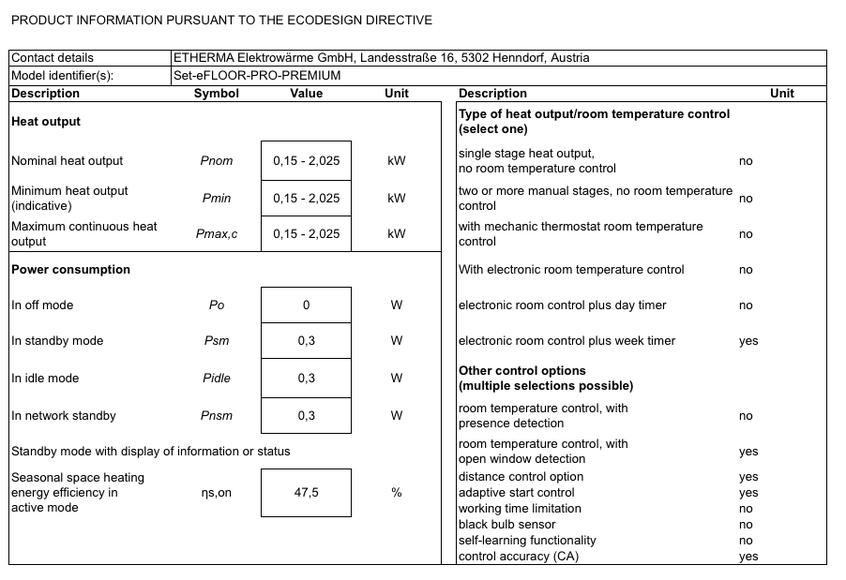

HEATING MAT SET ETHERMA eFLOOR PRO PREMIUM With intelligent built-in switch thermostat eTOUCH PRO

  • 1 pc. mesh heating mat eFLOOR PRO, 150 W/m²

    1 pc. eTOUCH PRO built-in switch thermostat

    1 pc. sensor protection tube FSH-12

    2.5 m installation hose SS-12

  • PFAS-free

    Only 3.0 mm thin

    Also suitable as wall heating

    Self-adhesive mesh heating mat

    One connection cable

    Very low magnetic field < 25 nT

    Flat, torsion-free support

    Special services and sizes made to measure

    Connection cable made to measure possible

Voltage: 230 V
Output: 150 W/m2
Temp. resistant: up to 90°C
Mat height: 3.8 mm
Width: 50 cm
IP rating: IP X7
Protection: RCD 30 mA
Connection cable: 4 m; 2 x 1.0 mm² + protective braid

Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.

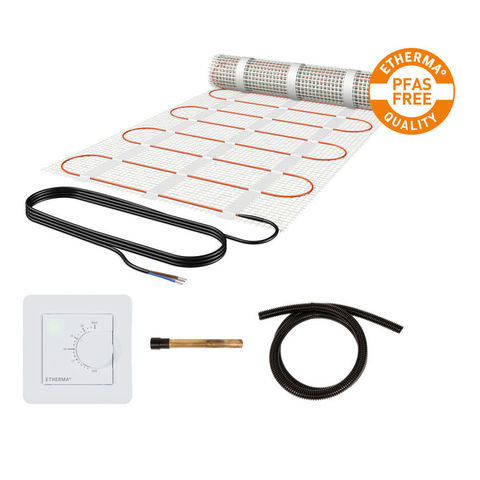

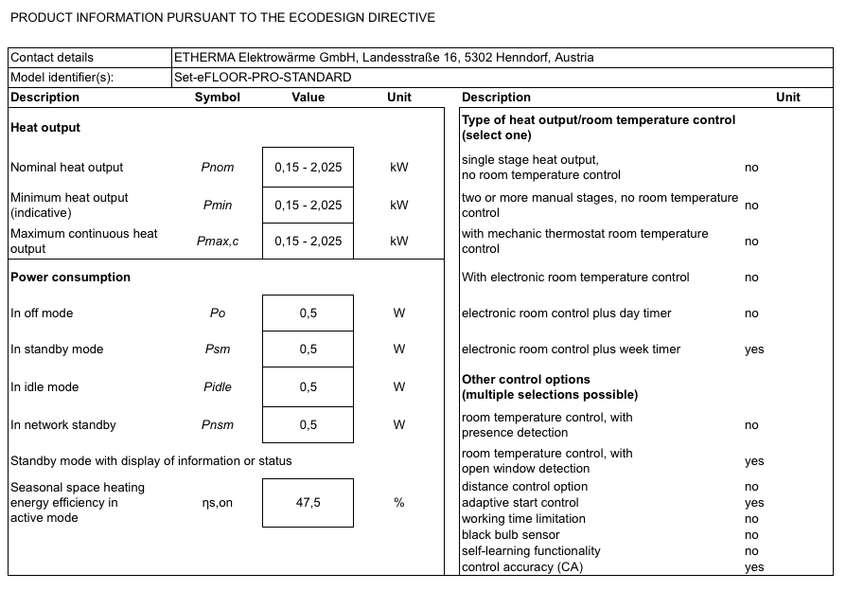

HEATING MAT SET ETHERMA eFLOOR PRO STANDARD With switch mounted thermostat eBASIC

  • 1 pc. mesh heating mat eFLOOR PRO, 150 W/m²

    1 pc. eBASIC built-in switch thermostat

    1 pc. sensor protection tube FSH-12

    2.5 m installation hose SS-12

  • PFAS-free

    Only 3.0 mm thin

    Also suitable as wall heating

    Self-adhesive mesh heating mat

    One connection cable

    Very low magnetic field < 25 nT

    Flat, torsion-free support

    Special services and sizes made to measure

    Connection cable made to measure possible

Voltage: 230 V
Output: 150 W/m2
Temp. resistant: up to 90°C
Mat height: 3.8 mm
Width: 50 cm
IP rating: IP X7
Protection: RCD 30 mA
Connection cable: 4 m; 2 x 1.0 mm² + protective braid

Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.

ETHERMA eWARRANTY Your heating. Your safety.



With ETHERMA eWARRANTY, you can extend the warranty on your electric heater to up to 30 years - free of charge and without any effort. Simply register online and sit back and relax.

CASE STUDY

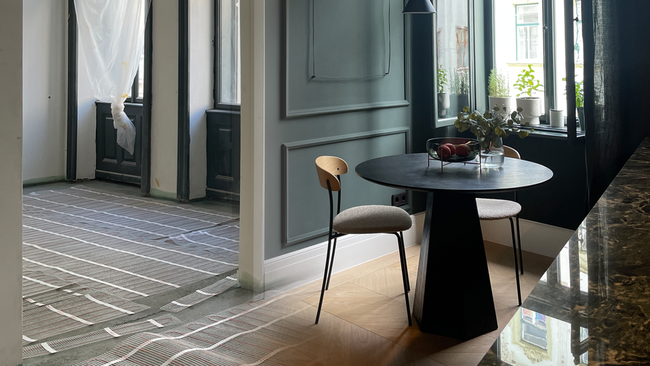

INGENIOUS HEAT FOR AN OLD VIENNESE BUILDING Underfloor heating ETHERMA eFLOOR PRO | Austria

THE INITIAL SITUATION

Living, renovation, interior design & lifestyle - these are the topics that Marietta Kiesling covers professionally. Live and on her Instagram account "vonmuto.living". She plans, accompanies and documents projects in residential and commercial real estate. From the idea to the realization and with pleasure especially. The "Salon Mignon" project in Vienna's 18th district is another highlight: a 70 m² apartment in an old building. The task: general refurbishment. Here too, Marietta relied on renowned quality partnerships. "I have already installed electric underfloor heating systems from ETHERMA in several bathrooms. In the Salon Mignon, however, it concerns the entire apartment, i.e: ETHERMA is the only heating source.

THE ETHERMA SOLUTION

The decision was clear from the start: no gas! Instead, modern, efficient underfloor heating and a very well installed 120 liter boiler in the bathroom. Marietta Kiesling says: "Based on my experience in a wide variety of living situations, I often prefer electric heating because it warms up very quickly and, even in transitional periods, only certain rooms can be heated without having to start up an entire heating system. The experienced ETHERMA technical team was on hand to offer advice and recommended the eFLOOR PRO thin-bed mesh heating mat, an underfloor heating system that can be used both under parquet flooring (trowelled into the flexible adhesive with a thickness of just 3.0 mm) and under tiles in wet areas. The low installation height makes it the ideal solution for renovation projects. Around 50 m² of heating mats with a total output of 8.7 kW now provide pleasant warmth. A bus system provides a small smart home and enables targeted individual room control of the heating - efficient and cost-conscious and also sustainable thanks to green electricity.
