SWITCHES AND BOX-MOUNTED THERMOSTATS

SWITCHES AND BOX-MOUNTED THERMOSTATS Product overview and technical data.

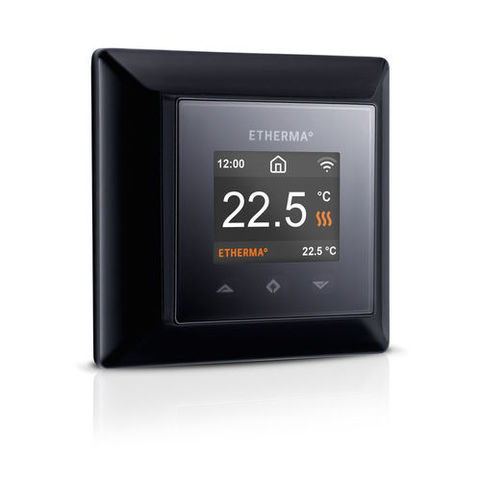

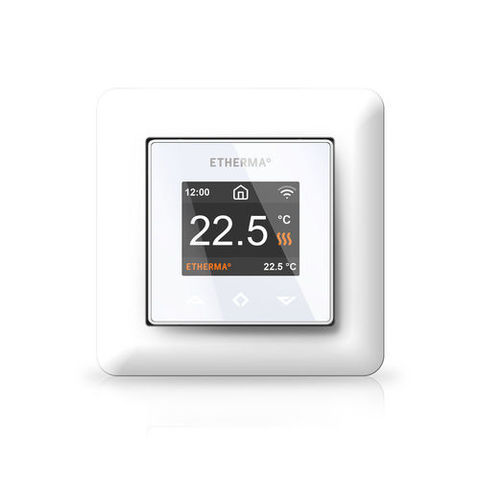

eTOUCH PRO – SWITCH-MOUNTED THERMOSTAT WITH APP & WIFI

In addition to local operation, the smart eTOUCH PRO with elf-learning mode can also be integrated into a 2.4 GHz WLAN and therefore operated from anywhere using an iOS or Android terminal device. The controller has a 1.8" TFT color display with three capacitive buttons for operation. Five different operating modes can be selected to optimise personal comfort and energy costs: Home, Absence, Weekly program, Frost protection or Output control. In addition, the floor, room or combi thermostat has adjustable heating behavior to protect different floor coverings, temperature drop detection and is Ecodesign guidelines compliant. Support of a large number of commercially available temperature sensors makes it easy to convert old thermostats.

  • WiFi enabled

  • Remote control via app

  • Simple menu navigation

  • Installer mode: Calibration probe

  • self-learning mode

  • Energy consumption display

  • Automatic change from summer to winter time

  • Switchable as output control, floor, room or combi thermostat

  • Ecodesign guidelines compliant

Voltage: 230 V
Switching current: 16 A
Temp. range: 5 to 40 °C
Installation: In flush-mounted switch-box
Floor temp. limit value: +50 °C
Color: White, similar to RAL 9003 or black, similar to RAL 9011
Dimensions: 55 x 55 mm (without frame)
Floor sensor: 3 m NTC (extendable to 50 m)
Protection: IP 21
Certification: EC compliant
Wi-Fi: 2,4 GHz 802.11 bgn

Manufacturer: BERKER

Type: S1 10118989 without intermediate frame

Color: Glossy white

Accuracy: Yes



Manufacturer: Busch & Jäger

Type: Reflex SI 2511214

Color: white

Accuracy: Yes



Manufacturer: Gira

Type: Standard 55, 021103RWS.GL.SYST.55

Color: pure white

Accuracy: Yes



Manufacturer: Gira

Type: Gira Esprit glass frame, single cover frame

Color: glass white

Accuracy: Yes



Manufacturer: Jung

Type: AS581WW

Color: white

Accuracy: Yes



Manufacturer: Siemens

Type: Delta Line 5 TG 2551-0

Color: titanium white

Accuracy of fit: Yes, the display does not completely close with the frame
