ETHERMA eFLOOR LAMINOTHERM The perfect underfloor heating for laminate, parquet & more
Are you looking for an efficient, flat and environmentally friendly underfloor heating system for laminate or parquet floors? With eFLOOR LAMINOTHERM, ETHERMA offers an innovative heating solution for the highest demands. The electric heating mat is ideal for retrofitting or in new builds - whether in the living room, bedroom or conservatory. Simply lay it as a floating floor, lay the lamino fleece underneath and the floor covering on top - and the feel-good climate is ready!
🔥 Discover now and experience cozy warmth directly under your feet!
Invisible warmth for noticeable comfort

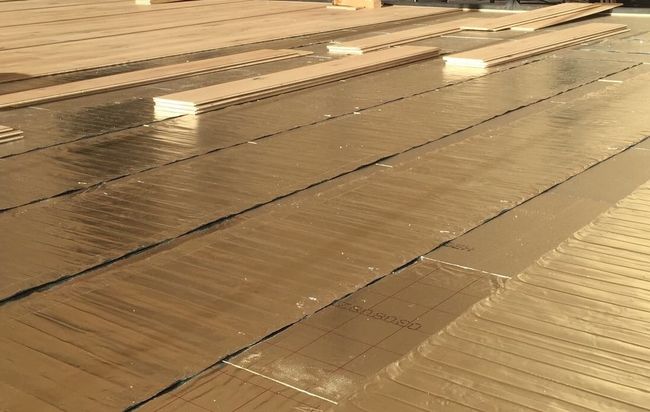

The eFLOOR LAMINOTHERM heating mat has been specially developed for laminate, parquet, cork and vinyl flooring with HDF core board. The heating system is installed as a floating floor - it does not need to be fixed to the subfloor. In combination with ETHERMA Laminoflies as impact sound insulation, the result is an optimum structure for even heat distribution and long-lasting function.
The reinforced aluminum mesh ensures homogeneous heat distribution without hot spots. The flat design of just 1.3 mm means it can also be used with low installation heights - ideal for renovations. And best of all: eFLOOR LAMINOTHERM is PFAS-free, low magnetic field (< 25 nT) and equipped with an RCD - for a safe, healthy and environmentally friendly indoor climate.
Product benefits at a glance
✅Extremely flat: only 1.3 mm installation height - ideal for renovations
✅ PFAS-free & sustainable
✅ Low magnetic field: < 25 nT
✅ Quick & easy installation thanks to floating system
✅ Even heat distribution thanks to aluminum mesh
✅ Versatile use: laminate, parquet, cork
Areas of application
eFLOOR LAMINOTHERM is ideal for use as:
-
Full heating for standard insulated floors - e.g. in kitchens, bathrooms, anterooms, conservatories
-
Temperature control with poor insulation or increased heat requirements - ideal in old buildings, for example
Not suitable for: Carpet, PVC or tiles. For these coverings, we recommend our specially developed eFLOOR PRO or eFLOOR STRONG mesh heating mats.
Note: Do not install under fixed furniture such as boxes, beds or cupboards - risk of heat build-up!
PFAS-FREE UNDERFLOOR HEATING FROM ETHERMA For us and for future generations.
In a world where we need to protect our health and the environment, we at ETHERMA are once again setting new standards. We are proud to introduce our PFAS-FREE heating mat series ETHERMA eFLOOR. But what exactly does PFAS-FREE mean and why is it so important?

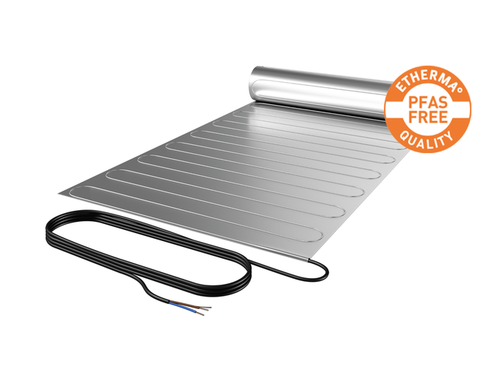

ETHERMA eFLOOR LAMINOTHERM Underfloor heating under parquet and laminate
Benefits of this product
-
Extremely flat: only 1.3 mm - ideal for renovations
PFAS-free: for a sustainable, healthy living environment
Very low magnetic field: below 25 nT
Quick and easy installation: floating installation with just one connection cable
Ideal heat distribution: thanks to reinforced aluminum mesh
Dimensions
For use in dry rooms.
eFLOOR LM 120 W/m²
As full heating with standard insulation in kitchens, bathrooms, anterooms, conservatories. Or for temperature control with poor insulation or increased heat requirements.
Possible floor coverings & installation height (max.):
| Surface | Max. thickness (mm) |
|---|---|
|
Surface
Laminate
|
Max. thickness (mm)
9
|
|
Surface
Parquette
|
Max. thickness (mm)
15
|
|
Surface
Cork
|
Max. thickness (mm)
10
|

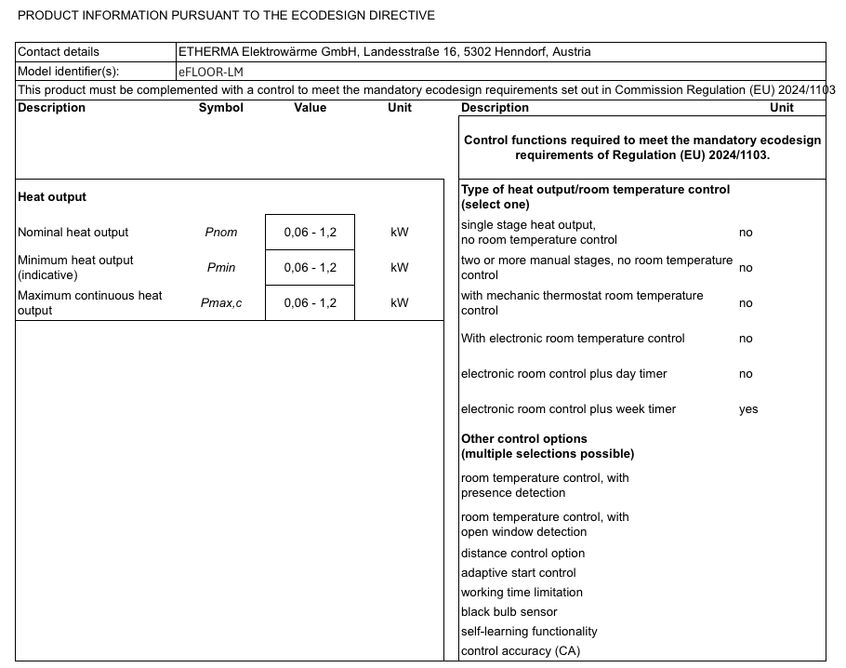

Ecodesign
This product is a fixed, electric underfloor single-room heating appliance; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2 or f4), the following combinations are possible: TW (f2), TW (f3), TW (f4), TW (f8)
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
"ECODESIGN-READY" BECOMES "ECODESIGN-COMPLIANT"
Your eFLOOR heating mat already meets the requirements of the new Ecodesign Directive (EU) 2024/1103 - all you need for full compliance is the right thermostat:
ETHERMA eTOUCH PRO
Smart thermostat with touchscreen, app & WLAN
✓ Control via smartphone (ETHERMA app)
✓ Weekly program, window open detection, adaptive heating behavior
✓ Ideal for those who want comfort & state-of-the-art technology
ETHERMA eTOUCH HYBRID
Design thermostat with touch display and two
relay outputs
✓ For mixed heating systems (e.g. eFLOOR + infrared heating)
✓ Touch operation directly on the device
✓ Integrated weekly program & additional functions
ETHERMA eBASIC
Classic rotary control with Bluetooth
✓ Simple operation & quick adjustment
✓ Control via app possible
✓ Ideal for smaller rooms or quick retrofitting

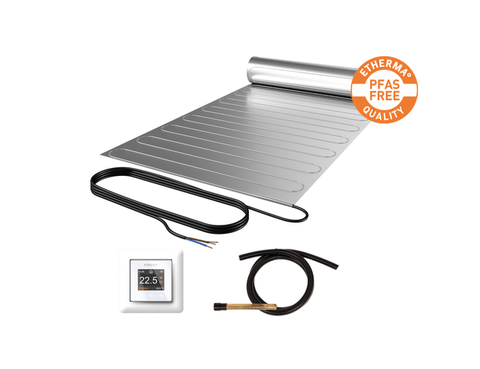

SET ETHERMA eFLOOR LM PREMIUM With intelligent built-in switch thermostat eTOUCH PRO
Set
> 1 eFLOOR LM 120 W/m²
> 1 eTOUCH PRO built-in switch thermostat
> 1 pc. Sensor protection tube FSH-12 incl. 2.5 m installation hose SS-12
Benefits of this product
-
Only 1.3 mm thin
Ideal heat distribution due to special foil surface
Very low magnetic field < 25 nT
Simple, quick installation thanks to floating installation and only one connection cable
Dimensions
For use in dry rooms.
LM-120 W/m²
As main heating in kitchens, bathrooms, foyers or winter gardens with standard
insulation. Or for temperature control in the event of poor insulation and/or
increased demand for heat.

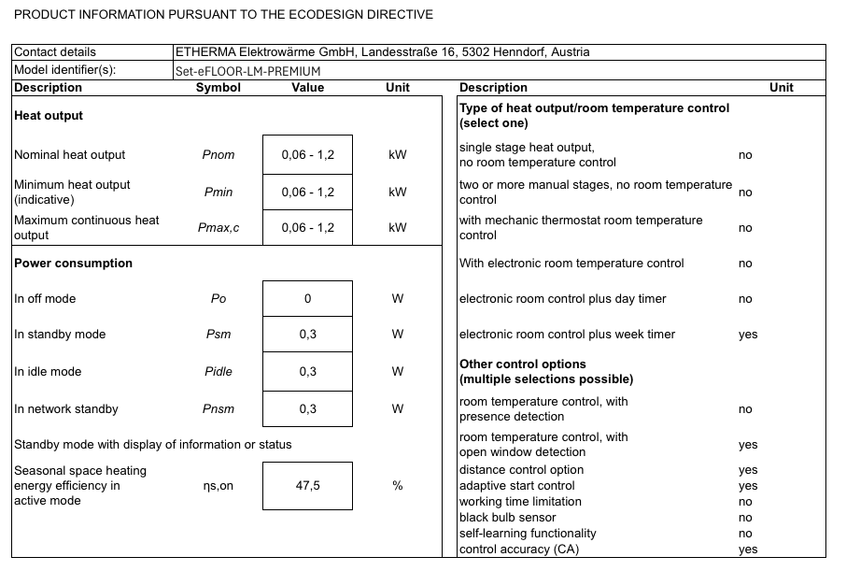

Ecodesign
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
ETHERMA eWARRANTY Your heating. Your safety.
With ETHERMA eWARRANTY, you can extend the warranty on your electric heater to up to 30 years - free of charge and without any effort. Simply register online and sit back and relax.

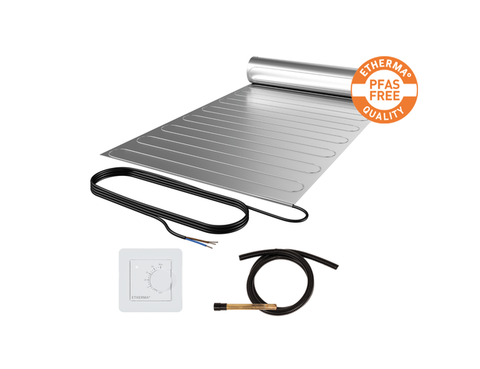

SET ETHERMA eFLOOR LM STANDARD With electronic built-in switch thermostat eBASIC
Set
> 1 eFLOOR LM 120 W/m²
> 1 eBASIC built-in switch thermostat
> 1 pc. Sensor protection tube FSH-12 incl. 2.5 m installation hose SS-12
Benefits of this product
-
Only 1.3 mm thin
-
Ideal heat distribution due to special foil
-
Very low magnetic field < 25 nT
-
Easy and quick mounting due to the floating installation and
one connection line
Dimensions
For use in dry rooms.
LM-120 W/m²
As main heating in kitchens, bathrooms, foyers or winter gardens with standard
insulation. Or for temperature control in the event of poor insulation and/or
increased demand for heat.

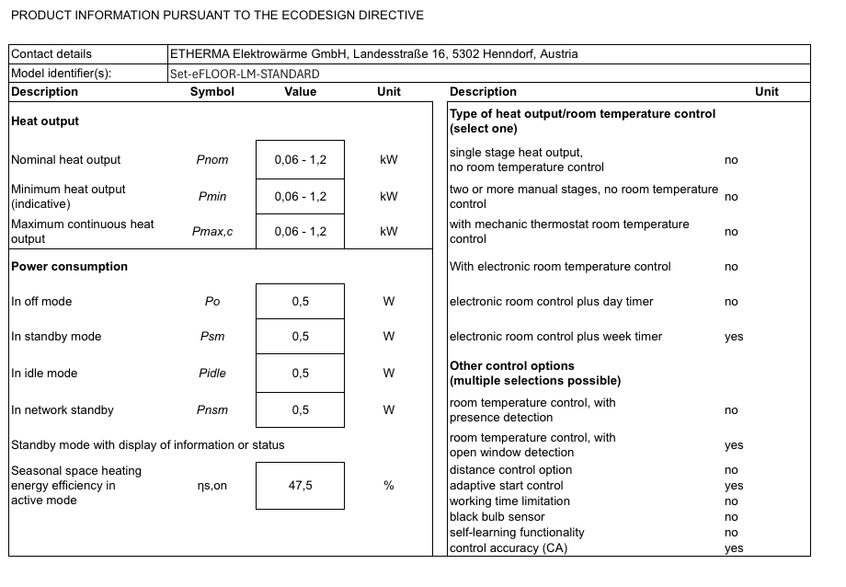

Ecodesign
Lorem ipsum vix at error vocibus, sit at autem liber? Qui eu odio moderatius, populo pericula ex his. Mea hinc decore tempor ei, postulant honestatis eum ut. Eos te assum elaboraret, in ius fastidii officiis electram.
