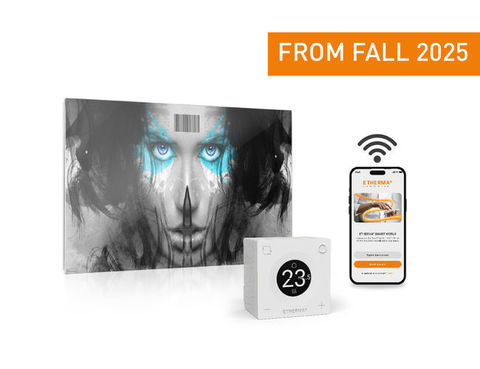

LAVA® DYL 3.0 The smart picture infrared heater you can design yourself
With the LAVA® DYL 3.0, ETHERMA presents an infrared heater that combines design, functionality and modern technology in one product. The special feature: This glass heater can be individually printed with your desired motif or company logo - making it a unique eye-catcher on the wall. Ideal for living rooms, offices, hotels, sales areas or reception areas where aesthetics are just as important as efficient heat.
However, the LAVA® DYL 3.0 not only impresses with its appearance, but also with its technology. As a high-quality infrared heater, it provides pleasant radiant heat that acts directly on the body, walls and objects - without any air turbulence. The result is a uniformly warm, comfortable room climate and a significantly increased sense of well-being.
The picture infrared heater is available as a SMART version and can be conveniently controlled via the ETHERMA SMART app - from home or on the move. Individual heating programs, time control or temperature control: this makes energy-efficient heating even more convenient.
Requirements for your desired motif How to make your LAVA® DYL perfect
To ensure that your individually printed infrared heater is not only functional, but also a real visual highlight, the selected image must meet certain technical requirements. This is the only way to guarantee brilliant colors, razor-sharp contours and a high-quality print result.

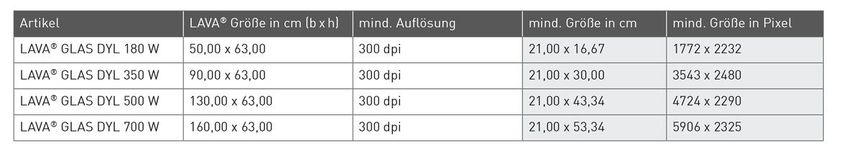

Minimum requirements for image size and resolution
The required image size depends on the desired heating panel model. As a rule of thumb, the image file must have a resolution of 300 dpi and at least the following dimensions in pixels: Requirements
Important: These values represent the minimum requirement. The higher the quality and size of the original image, the better the print result.
How to check your image resolution:
-
Open the folder with the desired image on your computer.
-
Right-click on the file and select "Properties".
Under the "Details" tab (possibly "Advanced") you will find the information on the image size (pixels) and resolution (dpi).
Tips for the perfect result:
-
Do not use screenshots, images forwarded via WhatsApp or web images - these usually have too low a resolution.
-
Original photos from digital cameras or professional graphics files (e.g. .jpg, .png, .tif, .pdf) are ideal.
-
Ensure good exposure and clear motifs - images that are too dark or blurred will look dull later on.
These simple steps will turn your personal LAVA® DYL 3.0 into a high-quality design object with an individual character - just the way you want it.
Benefits of this product
-
Ecodesign conformity
As a SMART version, the LAVA® DYL 3.0 infrared panel meets all current ecodesign requirements.Individual design with your own image motif

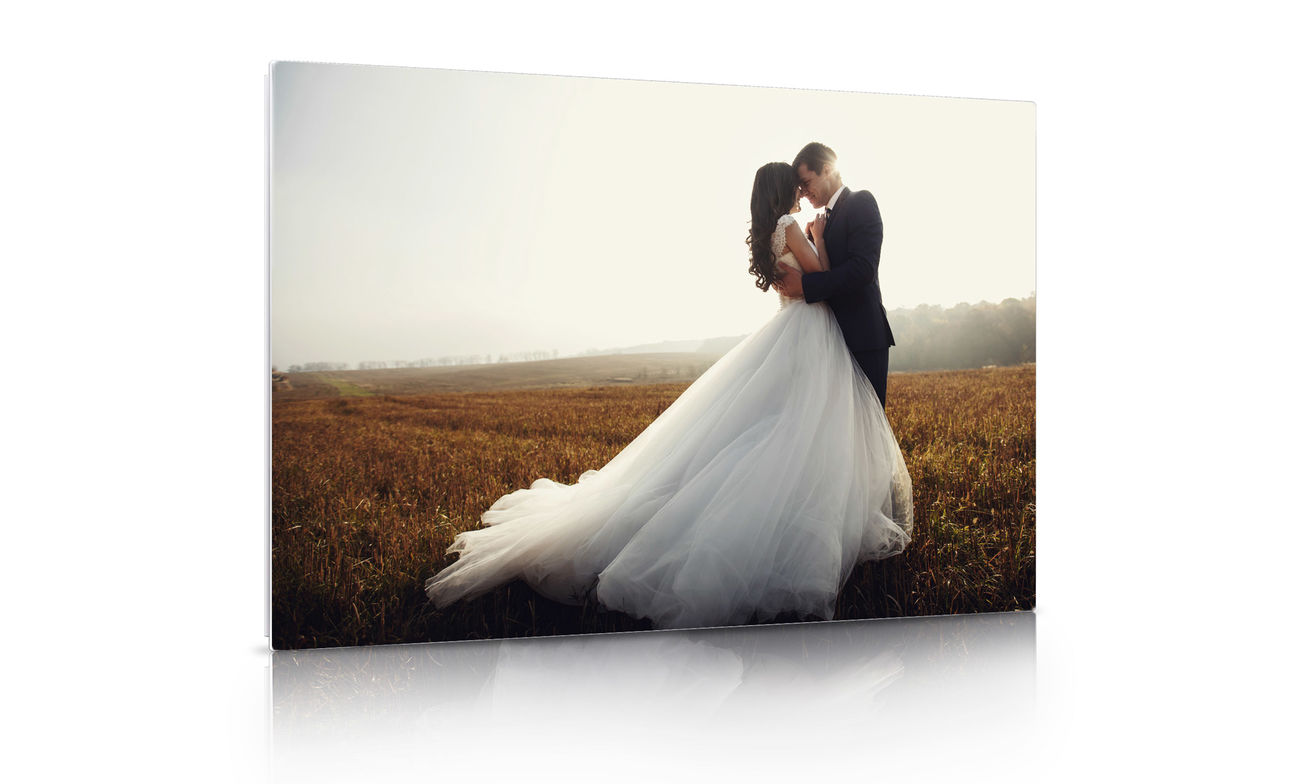

The frameless glass front of the LAVA® DYL 3.0 can be printed with a personal picture, a work of art or your company logo. This turns the heater into a real design object - and gives your room a unique visual identity. Whether in the living room, office, surgery or hotel: the LAVA® DYL 3.0 adapts aesthetically to any environment.Smart control via app
Thanks to the integrated SMARTBOX and SMARTCUBE, all devices in the 3.0 series can be conveniently controlled via WiFi using the ETHERMA SMART app - ideal for efficient heating in living and working areas.Flexible wall mounting
The panel has been specially designed for wall mounting and can be hung both vertically and horizontally, depending on the design.
Technical details
| Voltage: | 230 V |
| Output: | 180 - 700 W |
| Surface temp.: | Max. 70 °C at standard internal temp. |
| Surface: | 5 mm safety glass |
| IP rating: | IP X4 |
| Protection class: | I |
| Connection: | with plug 1 m |
| Wall installation: | horizontal or vertical |

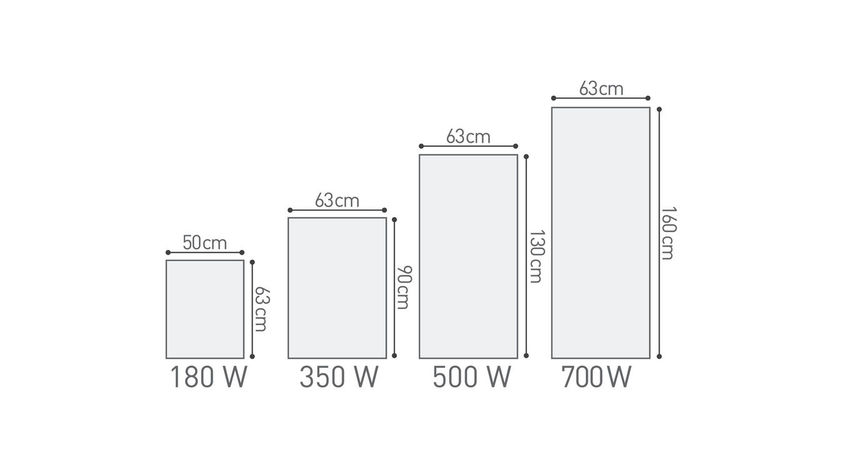

Dimensions
Printing information
Minimum requirements of the pictures:
Depending on the size of the LAVA, the image must also be of a certain size.
Here are the instructions for finding the image information and comparing with the
table below:
PLEASE NOTE: We check the image quality and inform you if the
image is printable.
FALSE RULES: Images should have at least 5 MB (at 300
dpi) or more, otherwise the quality of the print will be reduced too
much.
If your image does not have the correct format for the shape of the LAVA®, send us
your file with at least 5 MB at 300 dpi to marketing(kwfat)etherma(kwfdot)com and we will place
your image on the infrared heater.
Note for customers:
Please remember that these are minimum requirements for a good-quality
result.
The larger your image or photo, the more detailed the print will be
Ecodesign
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
ETHERMA eWARRANTY Your heating. Your safety.
With ETHERMA eWARRANTY, you can extend the warranty on your electric heater to up to 30 years - free of charge and without any effort. Simply register online and sit back and relax.
