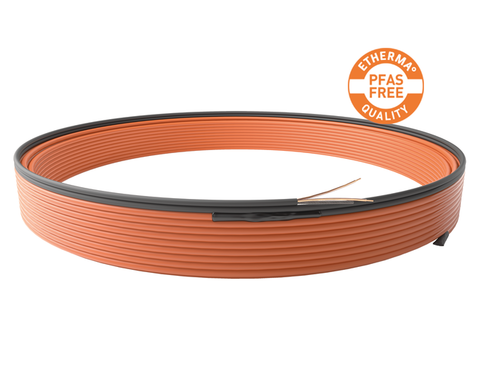

ETHERMA eFLOOR CABLE PRO Flexible heating cable for free laying in thin beds
PERFECT WARMTH EXACTLY WHERE YOU NEED IT.
The ETHERMA eFLOOR CABLE PRO is the ideal solution for individual underfloor heating systems using the thin-bed method - whether for new builds or renovations. The factory pre-assembled heating loop with an output of 12 W/m is particularly suitable for free installation in tile adhesive, allowing it to be perfectly adapted to the conditions of the room.
By flexibly adjusting the laying distance, the heating output can be tailored to the actual heat requirement - from 80 to 160 W/m². This not only makes efficient use of energy, but also ensures maximum comfort.
Versatile application possibilities
The eFLOOR CABLE PRO is ideal for:
-
Bathrooms & Kitchens
Renovations with low installation height
Small areas and angled floor plans
Supplementing existing heating systems
Your benefits with eFLOOR CABLE PRO
-
Individually adjustable heat output thanks to variable laying distance
Only one connection cable - for quick and easy installation
PFAS-free & environmentally friendly
Particularly durable heating conductor with TPCP insulation and protective aluminum sheathing
Made to measure - perfect for special solutions
Connection cable made to measure
Benefits of this product
-
Power output: 130 - 300 W/m²
-
Custom-made special power outputs available
-
Connection line custom-made available
-
Fast heating
-
Only 3.3 mm thin
-
Safe fitting guaranteed
-
Chemically resistant
Technical details
| Voltage: | 230 V |
| Output: | 12 W/m |
| Temp. resistant: | Up to 90°C |
| Special output: | on request |
| Cable thickness: | 3.2 mm |
| IP rating: | IP X7 |
| Protection: | RCD 30 mA |
| Connection cable: | 4 m; 2 x 1.0 mm² + protective braid |
| Certification: | EC compliant |

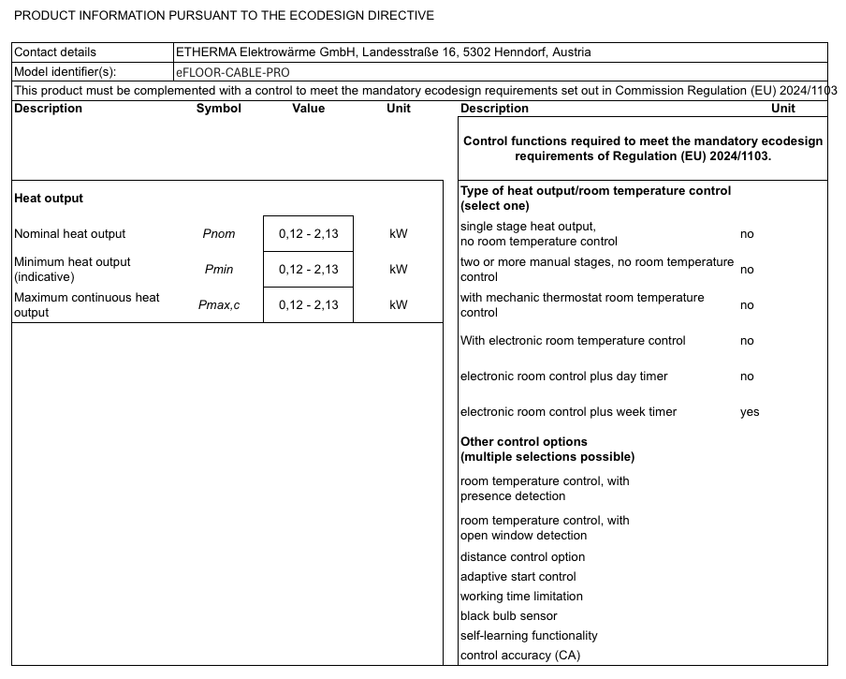

Ecodesign
This product is a fixed, electric underfloor single-room heating appliance; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2 or f4), the following combinations are possible: TW (f2), TW (f3), TW (f4), TW (f8)
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
"ECODESIGN-READY" BECOMES "ECODESIGN-COMPLIANT"
Your eFLOOR heating mat already meets the requirements of the new Ecodesign Directive (EU) 2024/1103 - all you need for full compliance is the right thermostat:
ETHERMA eTOUCH PRO
Smart thermostat with touchscreen, app & WLAN
✓ Control via smartphone (ETHERMA app)
✓ Weekly program, window open detection, adaptive heating behavior
✓ Ideal for those who want comfort & state-of-the-art technology
ETHERMA eTOUCH HYBRID
Design thermostat with touch display and two
relay outputs
✓ For mixed heating systems (e.g. eFLOOR + infrared heating)
✓ Touch operation directly on the device
✓ Integrated weekly program & additional functions
ETHERMA eBASIC
Classic rotary control with Bluetooth
✓ Simple operation & quick adjustment
✓ Control via app possible
✓ Ideal for smaller rooms or quick retrofitting
ETHERMA eWARRANTY Your heating. Your safety.
With ETHERMA eWARRANTY, you can extend the warranty on your electric heater to up to 30 years - free of charge and without any effort. Simply register online and sit back and relax.
Contact now
