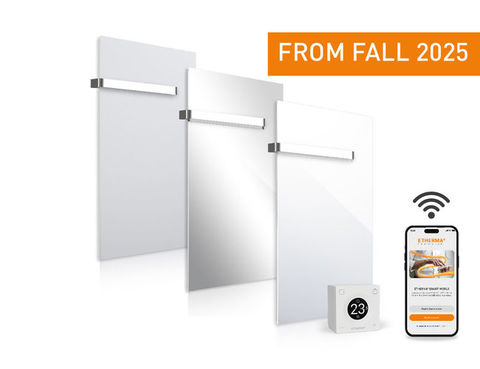

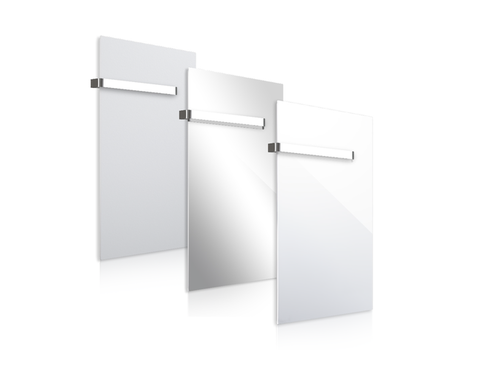

LAVA® BATH 3.0 infrared heating The smart infrared heater for the bathroom with style and function
The LAVA® BATH 3.0 is the perfect combination of elegant design, innovative infrared technology and smart ease of use - specially developed for use in the bathroom. With its elegant glass front, integrated towel rail and intelligent control solution, it brings stylish warmth and functionality to the point. Whether for new builds, renovations or as an energy-efficient retrofit: the LAVA® BATH 3.0 adapts flexibly to any room situation and impresses with its technology and aesthetics.
Design meets function
The frameless toughened safety glass ensures a modern, clear look that blends harmoniously into any bathroom ambience - whether classic, minimalist or luxurious. The heating surface is only 25 mm deep and nestles discreetly against the wall while ensuring maximum radiant effect. In combination with the optional, elegant stainless steel towel rail (included), the LAVA® BATH 3.0 becomes a stylish heating station - towels are kept at a pleasant temperature while the room is heated evenly.
Powerful & energy-efficient
The surface reaches a maximum temperature of 70 °C within a very short time, providing direct, pleasant infrared heat. The back is optimally insulated and prevents heat loss - so all the energy is emitted to the front of the room. With an output of 350 to 700 watts, the LAVA® BATH 3.0 is suitable for both supplementary and full heating in well-insulated bathrooms. This makes it the ideal solution for energy-efficient heating in small spaces.
Intelligent control with app
The SMART version of the LAVA® BATH 3.0 is equipped with the SMARTBOX (radio receiver) and the SMARTCUBE (radio thermostat) as standard. Using the free ETHERMA SMART app, heating times, temperatures and operating modes can be conveniently controlled via smartphone - whether at home or on the move. For maximum flexibility, the device can also be controlled with a wall switch, the eBASIC thermostat or the smart eTOUCH PRO. The SMART version is ready for immediate use - simply plug it into the socket and feel good.
Maximum safety - Made by ETHERMA
The LAVA® BATH 3.0 was specially developed for use in damp rooms. It complies with protection class IP X4 and is therefore optimally protected against splash water. Two integrated temperature limiters provide additional safety. ETHERMA focuses on the highest quality and durability - which is why this product is also part of the eWARRANTY extended warranty.

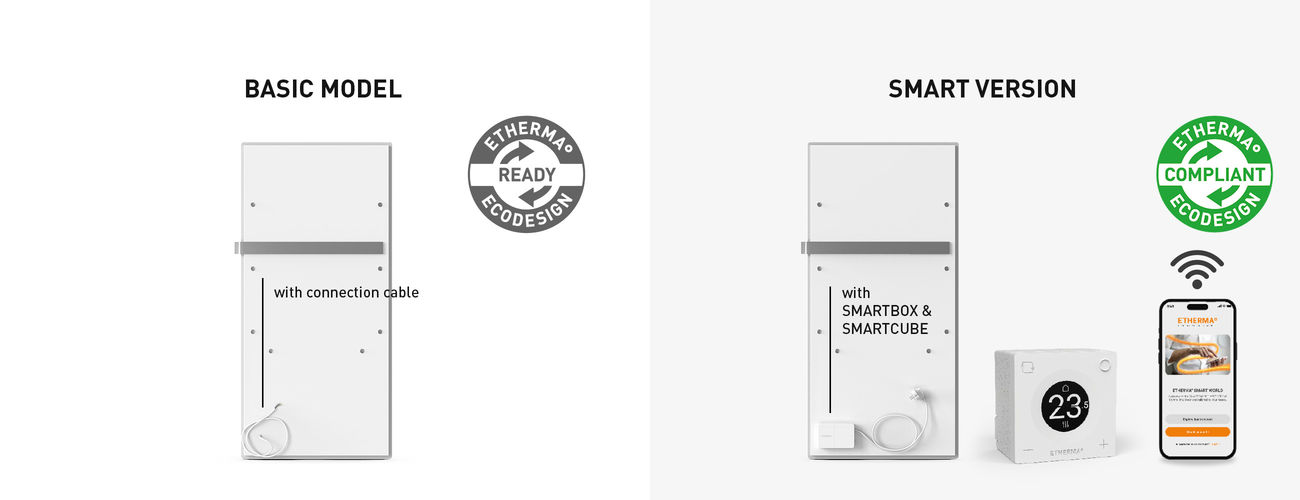

Modular system For maximum planning freedom
The LAVA® 3.0 series is designed to adapt flexibly to your project requirements - whether in private homes, hotels, offices or commercial buildings. The devices are available in two versions: as a basic model or as a SMART version. ETHERMA thus offers a future-proof solution that can be integrated into both conventional and modern, smart heating concepts.
The following applies to both versions:
-
100% ecodesign-compliant (basic variant in combination with suitable control unit)
-
Quick installation - can also be carried out by individuals without any problems
-
Easy-care & maintenance-free - no service required, no hidden follow-up costs
-
Durable & sustainable - Made in Europe, long-lasting technology, highest quality
This modular design makes LAVA® 3.0 infrared heaters the ideal solution for a wide range of applications - from new builds to renovations and smart living. Whether you are looking for a simple solution for your home or scalable technology for complex building automation - with LAVA® 3.0 you are on the safe side.
| FEATURE | BASIC MODEL | SMART VERSION |
|---|---|---|
|
FEATURE
Control
|
BASIC MODEL
External via eco-design-compliant thermostat
|
SMART VERSION
Incl. SMARTBOX + SMARTCUBE
|
|
FEATURE
Connection
|
BASIC MODEL
Connection cable 1 m
|
SMART VERSION
Plug with radio module
|
|
FEATURE
Installatin
|
BASIC MODEL
Wall (v)
|
SMART VERSION
Wall (v)
|
|
FEATURE
Glass front
|
BASIC MODEL
Safety glass
|
SMART VERSION
Safety glass
|
|
FEATURE
Surface temp.
|
BASIC MODEL
max. 70°C
|
SMART VERSION
max. 70°C
|
LAVA BATH 3.0 infrared heating Basic model
Benefits of this product
-
Ecodesign conformity
The basic model is Ecodesign-compliant in conjunction with a suitable thermostat.Smart home integration
The basic model can be upgraded to the SMART version at any time with the SMART SET - consisting of SMARTBOX (radio receiver) and SMARTCUBE (thermostat). This allows you to conveniently control your infrared heater using the ETHERMA SMART app via WiFi - for maximum control, energy efficiency and convenience.Optimum heat radiation
The even surface temperature and the optimally insulated rear ensure high radiation efficiency and effective heat emission to the front of the roomTwo functions in one device
The LAVA® BATH 3.0 functions both as an energy-efficient infrared heater and as a convenient towel warmer. The LAVA® Halti towel rail supplied provides space for one towel - two further holders can be fitted as an option.Modern, minimalist design
The frameless, slimline appearance in combination with 5 mm toughened safety glass gives the panel an elegant and timeless look.Highest safety standards
With protection class IP X4, the heating panel is ideal for damp rooms. Two integrated temperature limiters provide additional safety.
Technical details
| Voltage: | 230 V |
| Output: | 350 - 700 W |
| Surface temp.: | max. 70 °C |
| Surface: | 5 mm safety glass |
| IP rating: | IP X4 |
| Protection class: | I |
| Connection: | Connection cable 1 m |
| Wall installation: | only vertical |

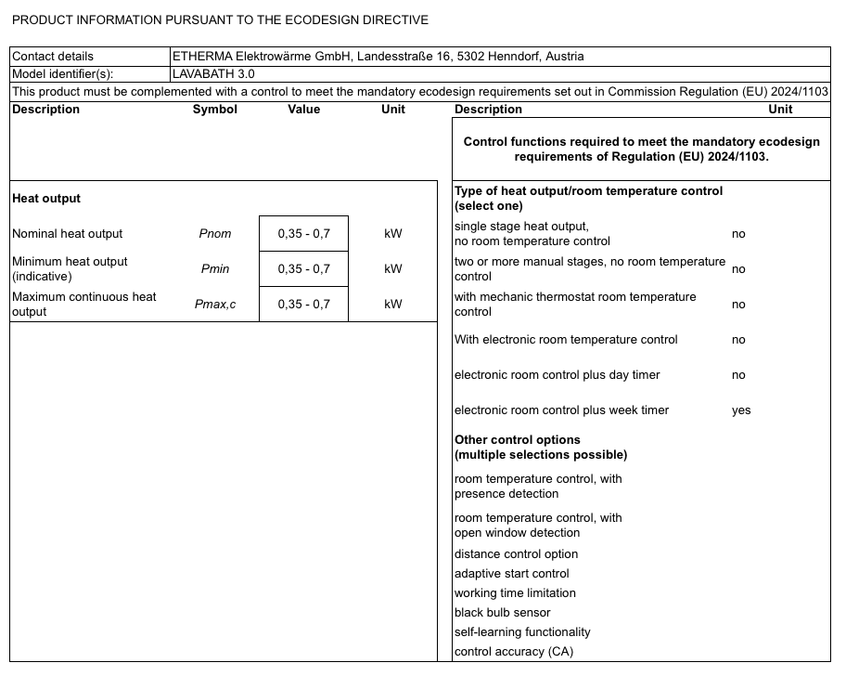

Ecodesign
This product is a towel rail with a nominal heat output of more than 250W; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW)
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
LAVA® BATH 3.0 SMART infrared heating SMART Version
Benefits of this product
-
Ecodesign conformity
The SMART version meets all the requirements of EU Directive (EU) 2024/1103 and thus contributes to energy efficiency and reducing the carbon footprint.Smart home integration
The LAVA® BATH 3.0 SMART is equipped with the intelligent SMART control system. This enables simple, flexible control via SMARTBOX (radio receiver) and SMARTCUBE (radio thermostat) - controllable with the ETHERMA SMART app (iOS & Android). This allows temperatures, time programs and comfort modes to be conveniently set via smartphone or tablet.Simple installation
The SMART version is ready for immediate use: simply plug it in and get started. Perfect for retrofitting in existing buildings - without any chiseling work or complicated wiring. Vertical wall mounting is uncomplicated and space-saving.Optimum heat radiation
The uniform surface temperature and the optimally insulated rear ensure high radiation efficiency and effective heat emission to the front of the room.Two functions in one device
The LAVA® BATH 3.0 functions both as an energy-efficient infrared heater and as a convenient towel warmer. The LAVA® Halti towel rail supplied provides space for one towel - two further holders can be fitted as an option.Modern, minimalist design
The frameless, slimline appearance in combination with 5 mm toughened safety glass gives the panel an elegant and timeless look.Highest safety standards
With protection class IP X4, the heating panel is ideal for damp rooms. Two integrated temperature limiters provide additional safety.
Technical details
| Voltage: | 230 V |
| Output: | 350 - 700 W |
| Surface temp.: | max. 70 °C |
| Surface: | 5 mm safety glass |
| IP rating: | IP X4 |
| Protection class: | I |
| Connection: | with plug 1 m |
| Wall installation: | only vertical |
Ecodesign
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
ETHERMA eWARRANTY Your heating. Your safety.
With ETHERMA eWARRANTY, you can extend the warranty on your electric heater to up to 30 years - free of charge and without any effort. Simply register online and sit back and relax.
