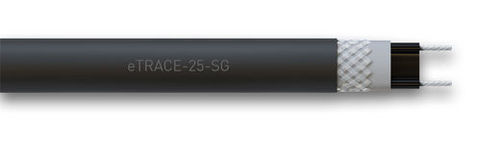

ETHERMA eTRACE-25-SG – SELF-REGULATING HEATING TRACE WITH PROTECTIVE BRAIDING
The versatile, self-regulating heating trace eTRACE-25-SG is suitable for temperatures up to 80 °C. It is suitable for household appliances as well as industrial applications as frost protection or for maintaining a constant temperature in pipes and vessels. The supply conductors are nickel-plated copper. All heating traces are moisture- proof and UV-resistant. Self-regulating heating traces can be easily cut to the desired length and used immediately. As pipeline trace heating, and in particular as frost protection or to maintain a constant temperature on pipes and vessels.
Benefits of this product
-
Self-regulating
-
Can be cut from the roll
-
Protected against moisture
-
UV, ozone and weather-resistant
-
Also suitable for plastic roof gutters
Technical data
| Voltage: | 230 V |
| Outer insulation: | TPE-O |
| Supply conductor: | 1.23 mm² nickel-plated copper |
| Max. permissible ambient temp OFF: | 80°C |
| Max. permissible ambient temp ON: | 65°C |
| Min. installation temp: | - 50°C |
| Min. bending radius: | 25 mm |
| Certification: | NEMKO |
Selection Guide
Pipeline trace heating, frost protection for industrial applications, temperature maintence on pipes and vessels Roof gutter heating
