HEATING TRACE For pipe trace heating.

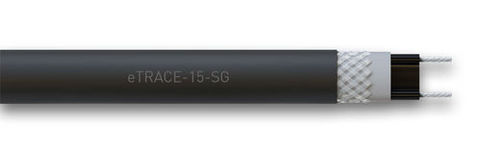

ETHERMA eTRACE-15-SG – SELF-REGULATING HEATING TRACE WITH PROTECTIVE BRAIDING

The versatile, self-regulating heating trace eTRACE-15-SG is suitable for temperatures up to 80 °C. It is suitable for household appliances as well as industrial applications as frost protection or for maintaining a constant temperature in pipes and vessels. The supply conductors are nickel-plated copper. All heating traces are moisture- proof and UV-resistant. Self-regulating heating traces can be easily cut to the desired length and used immediately. As pipeline trace heating, and in particular as frost protection or to maintain a constant temperature on pipes and vessels.

  • Self-regulating

  • Can be cut from the roll

  • Moisture-proof

  • UV, ozone and weather-resistant

  • Also suitable for plastic roof gutters

Voltage: 230 V
Outer insulation: TPE-O
Supply conductor: 1.23 mm² nickel-plated copper
Max. permissible ambient temperature switched off: 80°C
Max. permissible ambient temperature switched on: 65°C
Min. installation temperature: - 50°C
Min. bending radius: 25 mm
Certification: NEMKO

Pipeline trace heating, frost protection for industrial applications, temperature maintenance on pipes and vessels
