HEATING TRACE For pipe trace heating.

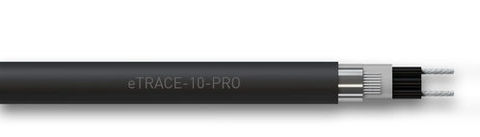

ETHERMA eTRACE-10-PRO – SELF-REGULATING HEATING TRACE

The eTRACE-10-PRO heating trace offers you the smallest possible dimensions, is very flexible in use and is ideal for short heating circuits. The heating trace can be used for frost protection and temperature maintenance up to 65 °C. The eTRACE-10-PRO is a lightweight self-regulating heating trace. Fields of application are industry and household appliances. Applications range from frost protection to temperature maintenance on pipes and vessels. The supply conductors are tin-plated copper, all heating traces are moisture-proof and UV-resistant. Self-regulating heating traces can be easily cut to the desired length and used immediately.

  • Self-regulating

  • Can be cut from the roll

  • Protected against moisture

  • UV, ozone and weather-resistant

  • Small dimensions

Output: 230 V
Outer insulation: TPE-O
Supply conductor: 0.56 mm² nickel-plated
Max. ambient temperature: switched off: 85 °C / switched on: 65 °C
Min. installation temperature: - 30°C
Min. bending radius: 25 mm
Certification: ATEX

Pipeline trace heating, frost protection for industrial applications, temperature maintenance on pipes and vessels
