HEATING TRACE For pipe trace heating.

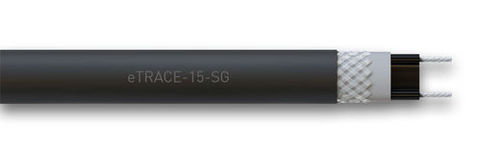

ETHERMA eTRACE-15-SG – self-regulating heating tape with protective braid

The versatile, self-regulating heating tape eTRACE-15-SG is suitable for temperatures up to 80 °C. It is suitable for building services as well as for industrial applications as frost protection or for keeping the temperature of pipes and containers constant. The supply conductors are nickel-plated copper. All heating tapes are moisture-proof and UV-resistant. Self-regulating heating tapes can be easily cut to the required length and used immediately.

  • Self-regulating

  • Can be cut from the roll

  • Moisture-proof

  • UV, ozone and weather-resistant

  • Also suitable for plastic roof gutters

Voltage: 230 V
Outer insulation: TPE-O
Supply conductor: 1.23 mm² nickel-plated copper
Max. permissible ambient temperature switched off: 80°C
Max. permissible ambient temperature switched on: 65°C
Min. installation temperature: - 50°C
Min. bending radius: 25 mm
Certification: NEMKO

Pipeline trace heating, frost protection for industrial applications, temperature maintenance on pipes and vessels

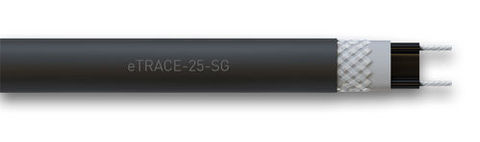

ETHERMA eTRACE-25 – SELF-REGULATING HEATING TRACE

The self-regulating heating trace eTRACE-25 can be used both as pipeline trace heating and as gutter heating. eTRACE-25 has a tin-plated copper supply conductor, is also moisture-protected, UV-resistant and can be used with temperatures of up to 80 °C. As self-regulating heating trace it can be easily cut to the desired length and used immediately.

  • Self-regulating

  • Can be cut from the roll

  • Protected against moisture

  • UV, ozone and weather-resistant

  • Also suitable for plastic roof gutters

Voltage: 230 V
Outer insulation: TPE-O
Supply conductor: 1.23 mm² nickel-plated copper
Max. permissible ambient temperature switched off: 80°C
Max. permissible ambient temperature switched on: 65°C
Min. installation temperature: - 50°C
Min. bending radius: 25 mm
Certification: NEMKO

Pipeline trace heating, frost protection for industrial applications, temperature maintence on pipes and vessels Roof gutter heating
