PIPE TRACE HEATING Product overview and technical data

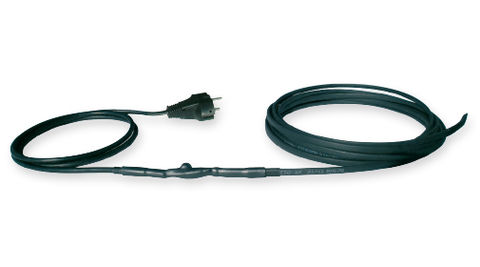

ETHERMA ICESTOP TRACE – PLUG & PLAY, SELF-REGULATING HEATING Trace WITH THERMOSTAT

ETHERMA ICESTOP TRACE protects pipes from ice and subsequent damage. It is a Plug & Play, self-regulating heating trace with a power output of 17 W/m at + 5°C. The thermostat is 100 % protected against humidity and switches frost protection on when at risk below + 3°C and off again above + 9°C. CAN BE LAID IN PLASTIC PIPES.

  • Finishing at plant simplifies installation

  • Self-regulating heating trace optimises heating performance

  • Usable on plastic pipes

  • Automatic activation below +3°C

  • Automatic switch-off above +9°C

Voltage: 230 V
Power at 5°C: 17 W/m
Min. installation temperature: - 45°C
On/off switching temp.: +3°C, +9°C
Min. bending radius: 25 mm
Dimensions: 8,0 x 5,5 mm
IP rating: IP X7
Connection cable: Connector cable 2 m; 3 x 1.5 mm²
Certification: CE compliant
  • Frost protection for pipes

  • Frost protection for troughs

  • Frost protection for plastic pipes

> Can be installed on plastic pipes.

> Crossing of the heating strips is allowed.

> Additional insulation of the pipe is crucial.

> We also manufacture intermediate ICESTOP TRACE lengths
