LAVA® BASIC 3.0 Warmth meets intelligence
The LAVA® BASIC 3.0 is the new generation of smart infrared heaters for walls and ceilings. It combines modern design with maximum energy efficiency and innovative technology. Whether as a basic model for fixed installation with external control or as a SMART version with integrated radio control and app operation - the LAVA® BASIC 3.0 offers maximum flexibility for private, commercial and public spaces.

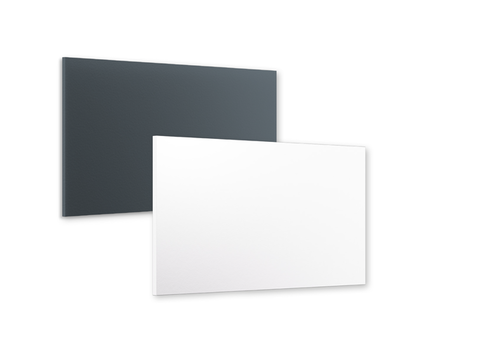

It is a high-quality, frameless infrared panel that has been specially developed for wall and ceiling mounting. With its slim design of just 18 mm depth, the heater blends harmoniously into any room design - whether in the living area, bathroom or office. The panel impresses with its flat, powder-coated metal surface, which is not only aesthetically pleasing, but also ensures even and pleasant infrared radiation. This is emitted over a large area by the particularly efficient surface coating and creates a pleasant feeling of warmth similar to solar radiation.
Thanks to the concealed rear mounting and clear lines, the panel has a modern and stylish look - perfect for sophisticated architectural concepts. It is available in the colors traffic white (RAL 9016) and nano anthracite (RAL 7016), allowing it to be seamlessly integrated into a wide variety of interiors. The radiant temperature is up to 120 °C when ceiling-mounted or 95 °C when wall-mounted, which enables a very fast warm-up time and at the same time ensures efficient surface heating.
Modular system For maximum planning freedom

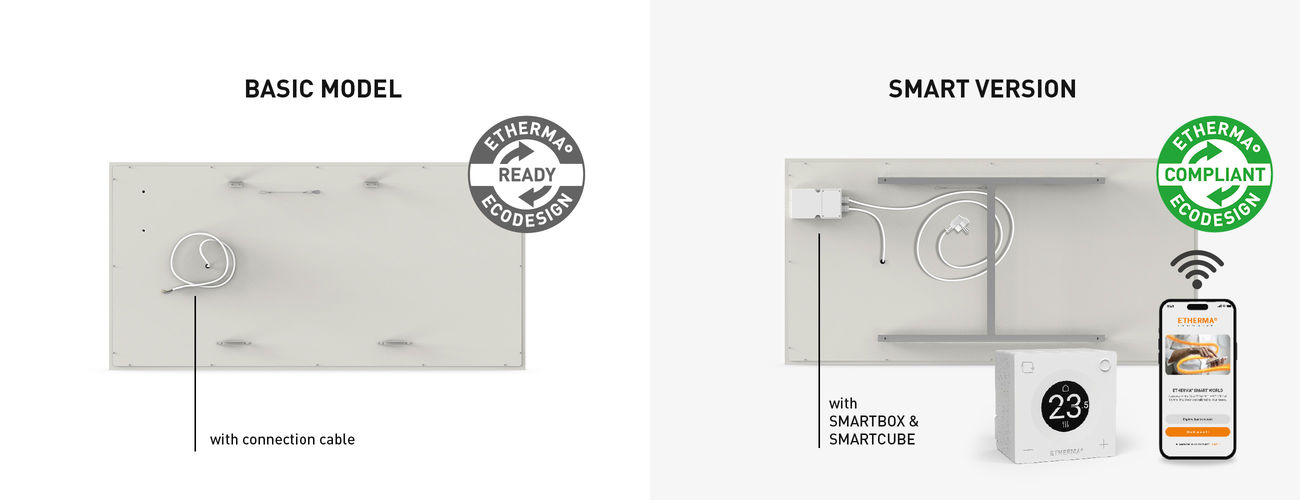

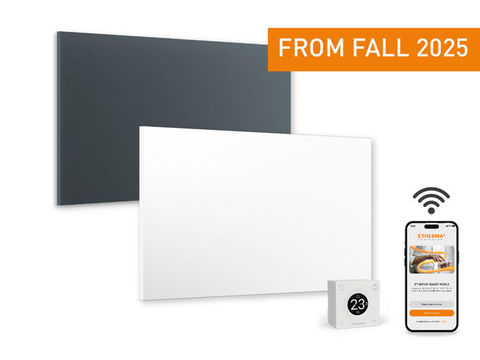

The LAVA® 3.0 series is designed to adapt flexibly to your project requirements - whether in private homes, hotels, offices or commercial buildings. The devices are available in two versions: as a basic model or as a SMART version. ETHERMA thus offers a future-proof solution that can be integrated into both conventional and modern, smart heating concepts.
The following applies to both versions:
-
100% ecodesign-compliant (basic variant in combination with suitable control unit)
-
Quick installation - can also be carried out by individuals without any problems
-
Easy-care & maintenance-free - no service required, no hidden follow-up costs
-
Durable & sustainable - Made in Europe, long-lasting technology, highest quality
This modular design makes LAVA® 3.0 infrared heaters the ideal solution for a wide range of applications - from new builds to renovations and smart living. Whether you are looking for a simple solution for your home or scalable technology for complex building automation - with LAVA® 3.0 you are on the safe side.
Technical highlights
| FEATURE | BASIC MODEL | SMART VERSION |
|---|---|---|
|
FEATURE
Control
|
BASIC MODEL
External via eco-design-compliant thermostat
|
SMART VERSION
Incl. SMARTBOX + SMARTCUBE
|
|
FEATURE
Connection
|
BASIC MODEL
Connection cable 1 m
|
SMART VERSION
Plug with radio module
|
|
FEATURE
Installation
|
BASIC MODEL
Wall (h/v), ceiling, grid ceiling
|
SMART VERSION
Wall (h/v), ceiling, grid ceiling
|
|
FEATURE
Front
|
BASIC MODEL
Powder-coated sheet steel
|
SMART VERSION
Powder-coated sheet steel
|
|
FEATURE
Surface temp.
|
BASIC MODEL
up to 95°C (wall), 120°C (ceiling)
|
SMART VERSION
up to 95°C (wall), 120°C (ceiling)
|
LAVA® BASIC 3.0 infrared heating Basic model
Benefits of this product
-
Suitable for ceiling and wall mounting
Ideal for the ceiling thanks to lightweight construction
New bracket for easy one-man installation
High radiation efficiency
Maximum radiation to the front thanks to optimally insulated rear side
325 & 680 W suitable for grid ceilings (625 x 625 mm)
No service, no maintenance required - saves money
Magnetic field-free
Technical details
| Voltage: | 230 V |
| Output: | 200-1350 W |
| Surface temp.: | max. 120°C for ceiling mounting / max. 95°C for wall mounting |
| Surface: | Metal |
| Color: | White / Nano-Anthracite |
| Device/mounting hight: | 18/48 mm |
| Installation heights Ceiling installation: | min. 1.85 m up to max. 2.8 m |
| Optimal installation height Ceiling installation: | 2.40 m to 2.60 m |
| IP rating: | IP X4 |
| Connection cable: | 1 m, 3 x 1,0 mm² without plug |
| Installation: | Wall & ceiling |
| Certification: | EC compliant |
Dimensions
The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.
The following is a guide:
15-40 W/m² Low energy and passive housing
45-65 W/m² Well insulated housing
70-85 W/m² Moderately insulated housing
90-110 W/m² Poorly insulated housing
Ecodesign

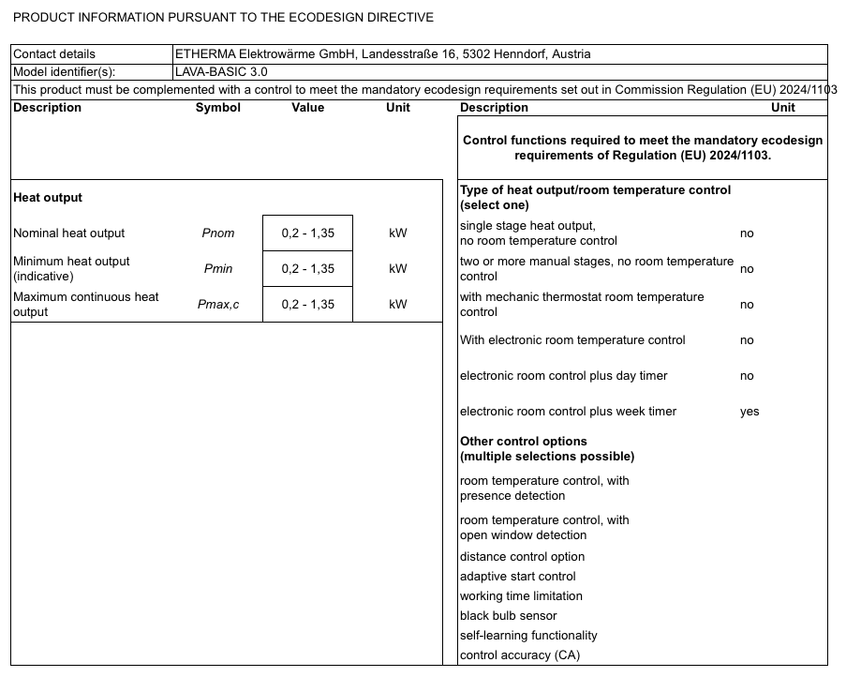

This product is a fixed, electric single-room heater with a rated heat output of more than 250W; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2, f4 or f8), the following combinations are possible: TW (f2), TW (f3), TW (f8)
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
LAVA® BASIC 3.0 SMART infrared heating SMART version
Benefits of this product
-
Suitable for ceiling and wall mounting
Ideal for the ceiling thanks to lightweight construction
New bracket for easy one-man installation
High radiation efficiency
Maximum radiation to the front thanks to optimally insulated rear side
325 & 680 W suitable for grid ceilings (625 x 625 mm)
No service, no maintenance required - saves money
Magnetic field-free
Technical details
| Voltage: | 230 V |
| Output: | 200-1350 W |
| Surface temp.: | Ceiling installation max. 120 °C / Wall installation max. 95 °C |
| Surface: | Steel sheet |
| Color: | White RAL 9016, Nano-anthracite RAL 7016 |
| Device/Installation height: | 18/48 mm |
| Installation height ceiling installation: | min. 1.85 m up to max. 2.8 m |
| Optimal installation height ceiling installation: | 2.40 m to 2.60 m |
| IP rating: | IP X4 |
| Connection cable: | 1 m; 3 x 1.0 mm² without plug |
| Installation: | Wall & ceiling |
| Certification: | EC compliant |
Dimensions
The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.
The following is a guide:
15-40 W/m² Low energy and passive housing
45-65 W/m² Well insulated housing
70-85 W/m² Moderately insulated housing
90-110 W/m² Poorly insulated housing
Ecodesign
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
