LAVA® 3.0 infrared heating The smart infrared heater for the wall
Modern, efficient and smart: The LAVA® 3.0 from ETHERMA offers you maximum flexibility - as a basic model or in the intelligent SMART version.
The new generation of infrared heating
The LAVA® 3.0 is more than just a heater - it is a stylish design element that blends seamlessly into any modern interior design. With its high-quality, frameless glass front, it impresses both visually and technically. Developed and manufactured in Europe, the panel stands for top quality, reliable performance and sophisticated functionality.
Thanks to state-of-the-art infrared technology, the LAVA® 3.0 provides pleasant, even radiant heat - similar to natural solar heat. It does not heat the air, but the walls, furniture and bodies in the room directly. The result: a comfortable, healthy room climate without air circulation, also ideal for allergy sufferers. The heating surface reaches a maximum temperature of around 95 °C and provides noticeable warmth within a very short time.
Available in four power ratings from 240 to 900 watts, the heating panel can be precisely adjusted to the requirements of any room. The LAVA® 3.0 is suitable both as additional heating for selective heat islands and as a fully-fledged heating system - whether in the home, office, hotel or commercial space.
Particularly practical: the modular design makes the LAVA® 3.0 especially flexible. While the BASIC version is designed for fixed cabling and external thermostat control, the system can be upgraded to a SMART version at any time with the SMARTSET. This allows users to benefit from app control, wireless thermostat and full connectivity - ideal for anyone who wants to plan classically today and upgrade smartly tomorrow.

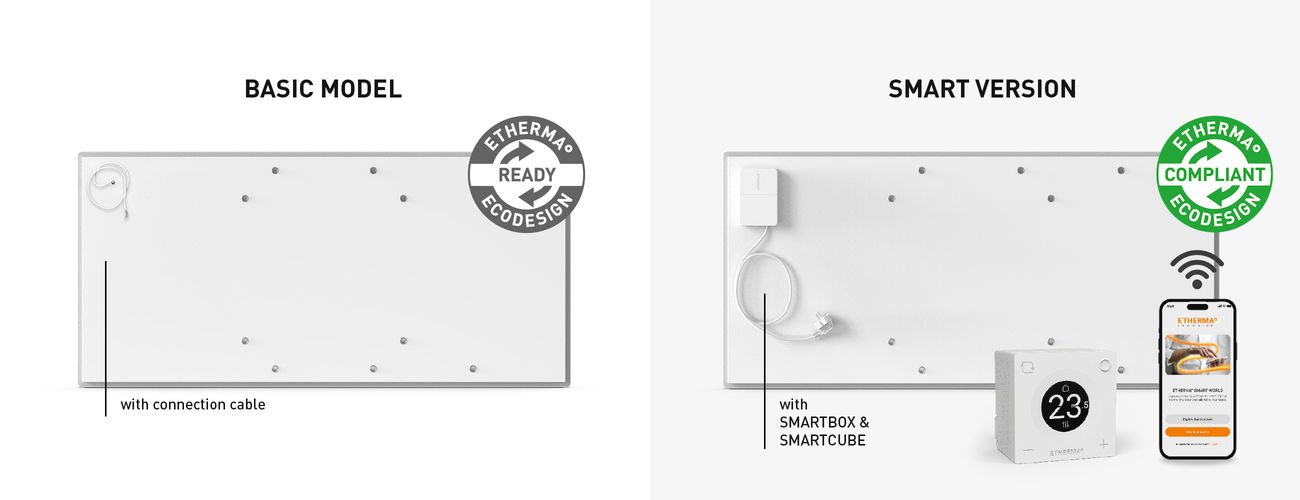

Modular system For maximum planning freedom
The LAVA® 3.0 series is designed to adapt flexibly to your project requirements - whether in private homes, hotels, offices or commercial buildings. The devices are available in two versions: as a basic model or as a SMART version. ETHERMA thus offers a future-proof solution that can be integrated into both conventional and modern, smart heating concepts.
The following applies to both versions:
-
100% ecodesign-compliant (basic variant in combination with suitable control unit)
-
Quick installation - can also be carried out by individuals without any problems
-
Easy-care & maintenance-free - no service required, no hidden follow-up costs
-
Durable & sustainable - Made in Europe, long-lasting technology, highest quality
This modular design makes LAVA® 3.0 infrared heaters the ideal solution for a wide range of applications - from new builds to renovations and smart living. Whether you are looking for a simple solution for your home or scalable technology for complex building automation - with LAVA® 3.0 you are on the safe side.
Technical highlights
| FEATURE | BASIC MODEL | SMART VERSION |
|---|---|---|
|
FEATURE
Control
|
BASIC MODEL
External via eco-design-compliant thermostat
|
SMART VERSION
Incl. SMARTBOX + SMARTCUBE
|
|
FEATURE
Connection
|
BASIC MODEL
Connection cable 1 m
|
SMART VERSION
Plug with radio module
|
|
FEATURE
Installation
|
BASIC MODEL
Wall (h/v)
|
SMART VERSION
Wall (h/v)
|
|
FEATURE
Glass front
|
BASIC MODEL
ESG safety glass
|
SMART VERSION
ESG safety glass
|
|
FEATURE
Surface temp.
|
BASIC MODEL
max. 95°C
|
SMART VERSION
max. 95°C
|
LAVA 3.0 Infrared heating Basic model
Benefits of this product
-
Ecodesign conformity
The basic model is Ecodesign-compliant in conjunction with a suitable thermostat.Smart home integration
The basic model can be upgraded to the SMART version at any time with the SMART SET - consisting of SMARTBOX (radio receiver) and SMARTCUBE (thermostat). This allows you to conveniently control your infrared heater using the ETHERMA SMART app via WiFi - for maximum control, energy efficiency and convenience.Optimum heat radiation
The even surface temperature and the optimally insulated rear ensure very high radiation efficiency and effective heat emission to the front of the roomModern, minimalist design
The frameless, slimline appearance in combination with 5 mm toughened safety glass gives the panel an elegant and timeless look.Highest safety standards
Two temperature limiters per appliance and high-quality glass materials ensure safe use - even in continuous operation.Efficiency & ease of use
The combination of state-of-the-art technology, app operation and well thought-out design enables a high level of convenience and energy-optimized use.Flexible application options
The LAVA® 3.0 can be installed horizontally or vertically and is ideal for a wide variety of room concepts, both as zone and full heating - from residential to commercial buildings.
Technical details
| Voltage: | 230 V |
| Output: | 240 - 900 W |
| Surface temp.: | Max. 95 °C at standard internal temp. |
| Surface: | 5 mm safety glass |
| Device/Installatin depth: | 25/55 mm |
| IP rating: | IP X4 |
| Protection class: | I |
| Connection: | 1 m, 3 x 1,0 mm2 |
| Wall installation: | horizontal or vertical |

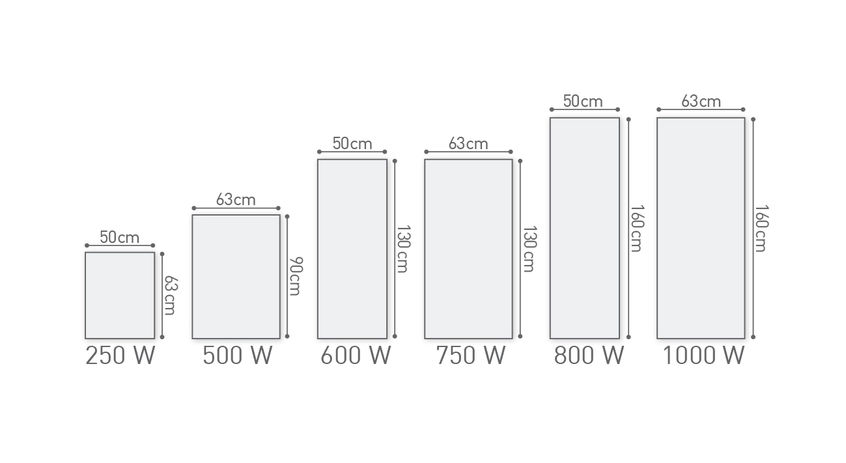

Dimensions

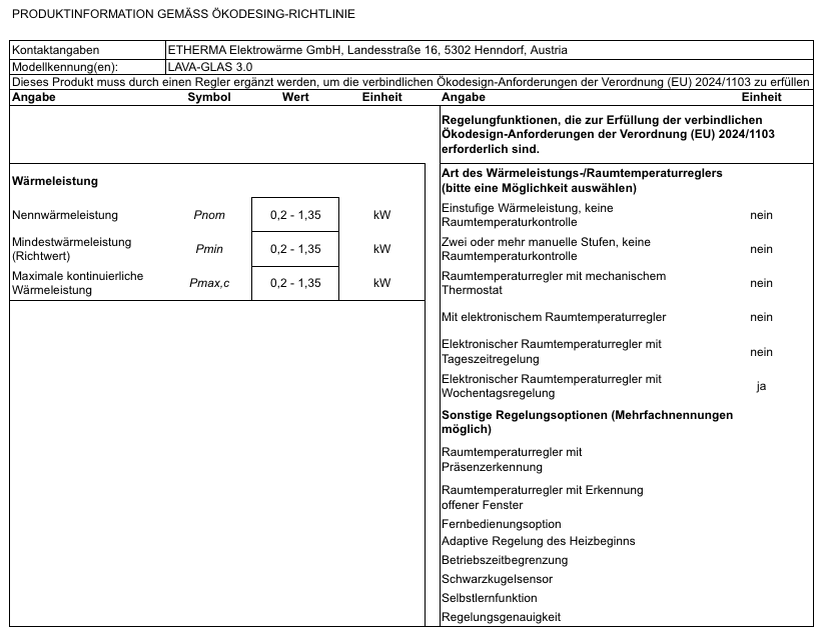

Ecodesign
This product is a fixed, electric single-room heater with a rated heat output of more than 250W; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2, f4 or f8), the following combinations are possible: TW (f2), TW (f3), TW (f8)
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
LAVA® GLAS 2.0 Infrared heating Mirror
Benefits of this product
-
Ecodesign conformity
The SMART version meets all the requirements of EU Directive (EU) 2024/1103 and thus contributes to energy efficiency and reducing the carbon footprint.Smart home integration
Thanks to the integrated SMARTBOX (radio receiver) and SMARTCUBE (radio thermostat), the LAVA® 3.0 can be conveniently controlled via WiFi using the ETHERMA SMART app - for maximum control and efficiencyOptimum heat radiation
The uniform surface temperature and the optimally insulated rear ensure very high radiation efficiency and effective heat emission to the front of the roomModern, minimalist design
The frameless, slimline appearance in combination with 5 mm toughened safety glass gives the panel an elegant and timeless look.Highest safety standards
Two temperature limiters per appliance and high-quality glass materials ensure safe use - even in continuous operation.Efficiency & ease of use
The combination of state-of-the-art technology, app operation and well thought-out design enables a high level of convenience and energy-optimized use.Flexible application options
The LAVA® 3.0 can be installed horizontally or vertically and is ideal for a wide variety of room concepts, both as zone and full heating - from residential to commercial buildings.
Technical details
| Voltage: | 230 V |
| Output: | 240 - 900 W |
| Surface temp.: | Max. 95 °C at standard internal temp. |
| Surface: | 5 mm safety glass |
| IP rating: | IP X4 |
| Protection class: | I |
| Connection: | with plug 1 m |
| Wall installation: | horizontal or vertical |
Dimensions
Ecodesign
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
