LAVA® INFRARED HEATING Product overview and technical data.

LAVA® LUX The perfect combination of warmth and light!

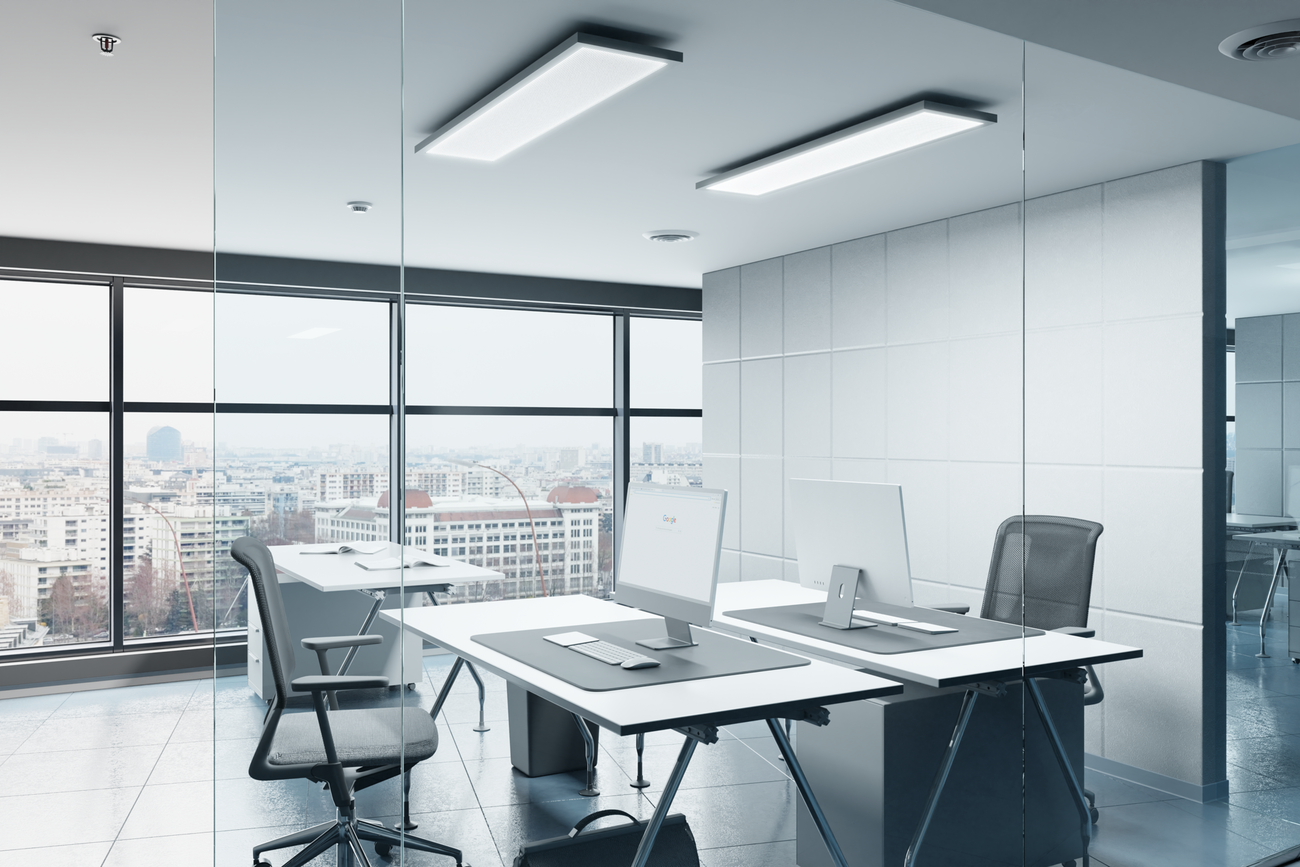

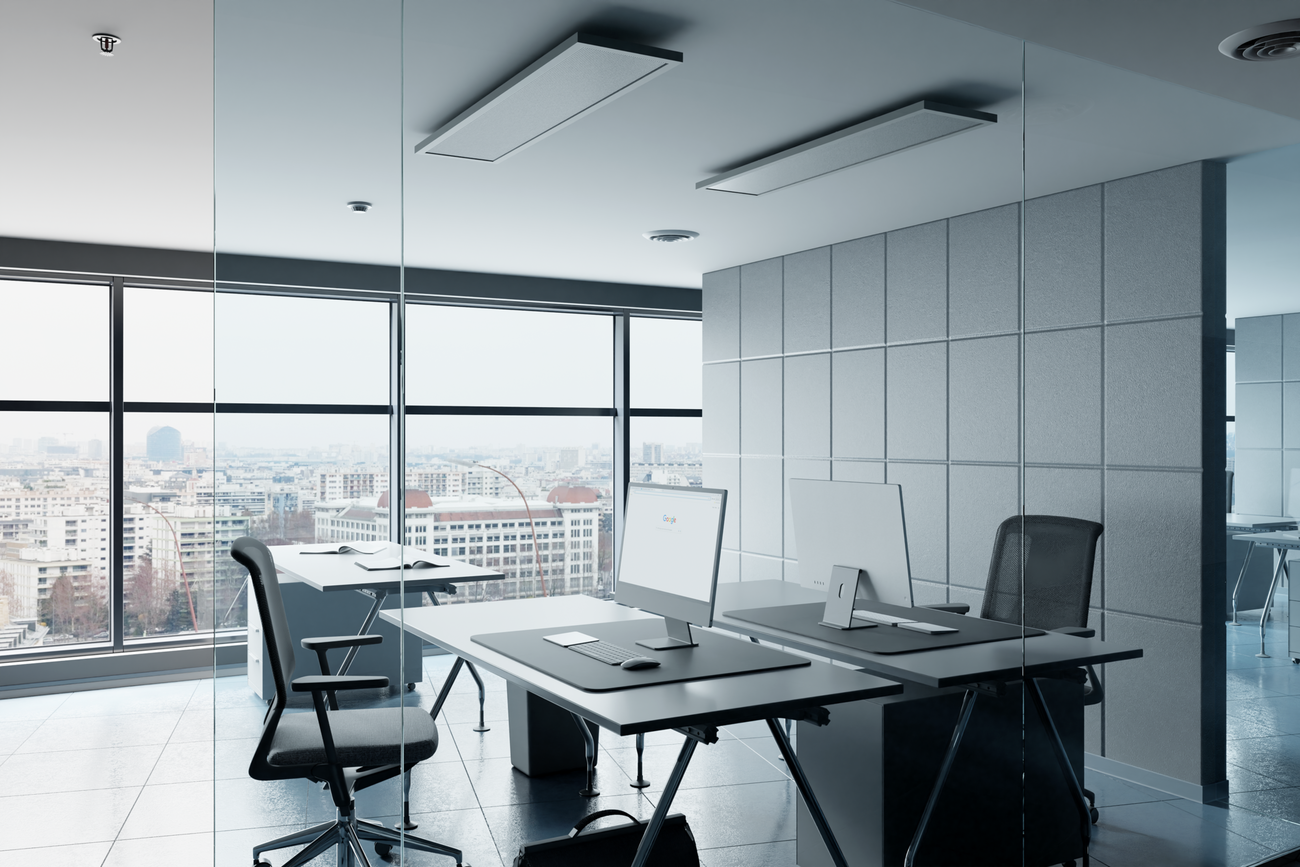

Experience the perfect symbiosis of heat and light with the revolutionary LAVA® LUX infrared heater! Thanks to patented technology, this innovative device combines a highly efficient infrared heater with an exclusive LED light in an elegant panel. The entire surface of the panel lights up and emits homogeneous light downwards, providing pleasant and even lighting.

The LAVA® LUX is the ideal solution for anyone looking for an additional source of warmth and optimum lighting in their office, surgery, reception area or home. Whether in the kitchen, bathroom or home office - the full-surface neutral white light (4000 K) provides perfect illumination, especially at workstations.

Flexibility is a top priority with the LAVA® LUX: Heating and light can be used separately or together. The device can be mounted directly on the ceiling or suspended. Thanks to its suitable dimensions, it can be seamlessly integrated into grid ceilings and used instead of a module.

Set new standards in terms of comfort and design with the LAVA® LUX - your innovative solution for heat and light in one.

  • Efficient infrared heating panel and LED light in one unit.

    Ideal for workplace heating with full lighting solution

    Full-surface light in neutral white (4000 K)

    Easy mounting on the ceiling or suspended

    Complete integration in grid ceilings possible

    As a full-fledged heater or additional and zone heater

    High quality design

    No service, no maintenance necessary

    Low consumption of the luminaire due to LED technology

    Suitable for workplaces, UGR < 19

Voltage: 230 V
Output: 370, 400 W
Surface temp.: max. 120 °C at standard internal temp.
Surface: safety glass
Frame: Aluminium white
Device/Installation depth: 25/55 mm
IP rating: IP 21
Voltage LED: 48V DC
Output LED: 58 W
Mounting: Ceiling / grid ceiling
Light color: 4000 K
IP rating transformer: IP 20
CRI: Ra>90
Energy efficiency class: E
Connection cable: 2x­1­m,­3­x­1,0­mm2 without plug

The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.

The following is a guide:

20-45 W/m² Low energy and passive housing

50-70 W/m² Well insulated housing

75-95 W/m² Moderately insulated housing

100-120 W/m² Poorly insulated housing

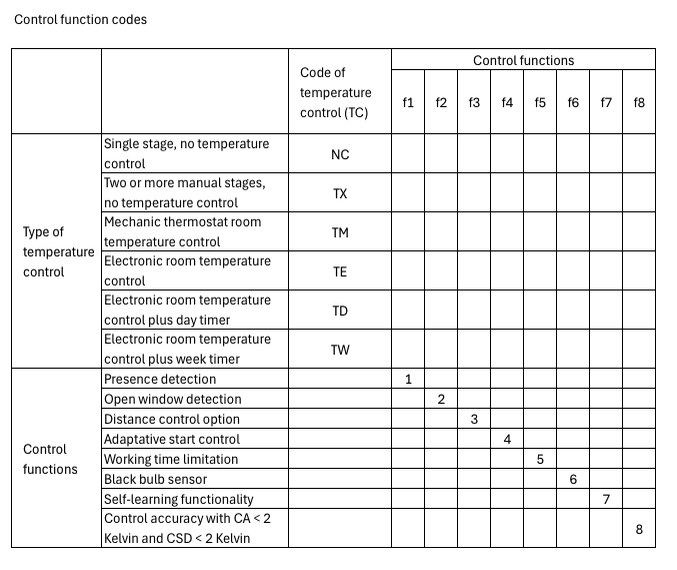

This product is a stationary, electric single-room heater with a rated heat output of more than 250W; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2, f4 or f8), the following combinations are possible: TW (f2), TW (f3), TW (f8)

Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
