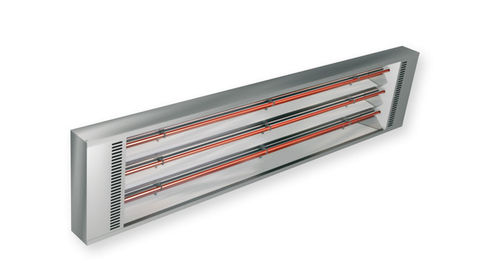

ETHERMA IH Industrial quartz heater
Due to its high operating temperature, the EIH infrared radiant heater is particularly suitable for fully heating rooms with high ceilings and large volumes, but can also be used as additional heating, for example in draughty working environments and outdoors (IP44), e.g. on sports stands or loading ramps to keep them dry and frost-free. The spotlights are made of corrosion-resistant materials that guarantee a long service life, while the reflector made of bright anodized aluminium ensures optimum heat distribution. The radiators can be mounted on the ceiling or on the wall. The mounting brackets supplied are adjustable and can be fixed in various positions.
Benefits of this product
-
For rooms with large amounts of space and high ceilings
-
Good heat distribution
-
Rust-resistant housing
-
Robust design
-
Adjustable orientation
-
Also for outdoor areas
Technical details
| Voltage: | 230 V, 400 V |
| Power: | 3000 - 6000 W |
| Max. element temperature: | 750°C |
| Colour: | Galvanised steel panel |
| Installation height: | 3 - 9 m |
| Protection rating: | IP 44 |
| Fixed connection: | I |
| Certification: | EC-compliant |
Installation height
Basic criteria:
1. Type of facility - business space, warehouse, etc.
2. Type of heating - full heating, area heating
3. Environment/building insulation
4. Height, installation height
5. Installation: on the wall or ceiling
The output, use and application of the ceiling heaters determine the different designs and performance of the heating units. The installation height, surroundings and desired type of heating primarily determine the choice of the product.

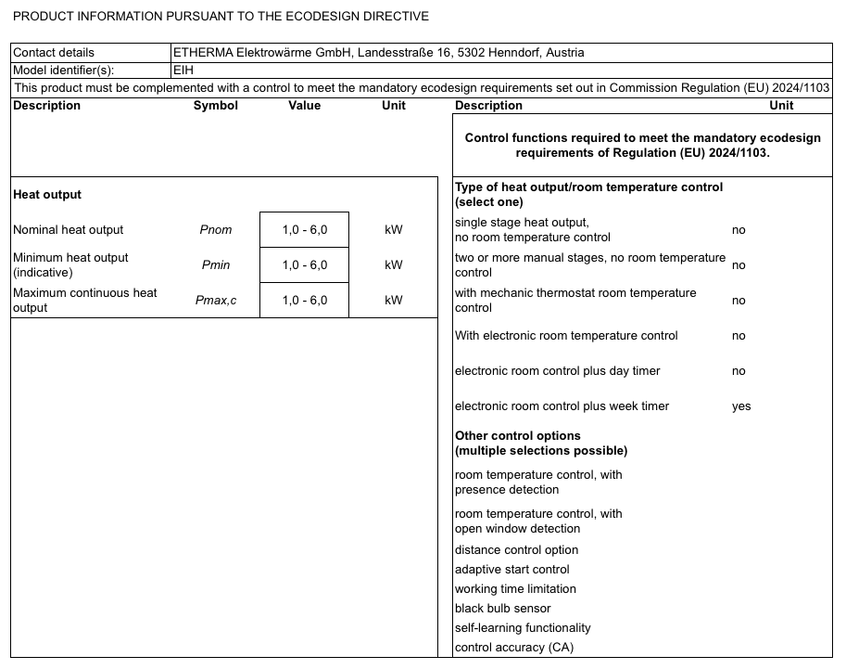

Ecodesign
This product is a stationary, electric single-room heater with a rated heat output of more than 250W; in order to meet the mandatory ecodesign requirements of Commission Regulation (EU) 2024/1103, it must be supplemented by a controller that fulfills at least the following control functions: electronic room temperature controller with weekday control (TW) and at least one f function (e.g. f2, f4 or f8), the following combinations are possible: TW (f2), TW (f3), TW (f8)
Old electrical and electronic appliances often still contain valuable materials. However, they may also contain harmful substances that were necessary for their function and safety. In residual waste or if handled incorrectly, these can harm the environment. Please help to protect our environment! Therefore, never dispose of your old appliance in the residual waste. Dispose of your old appliance in accordance with local regulations. Dispose of packaging material, subsequent replacement parts and appliance parts properly. The cardboard packaging can be recycled. Do not dispose of the electrical appliance with household waste, but take it to a local recycling center.
