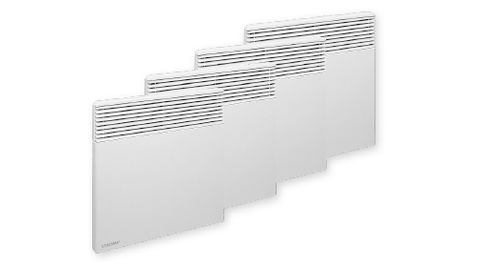

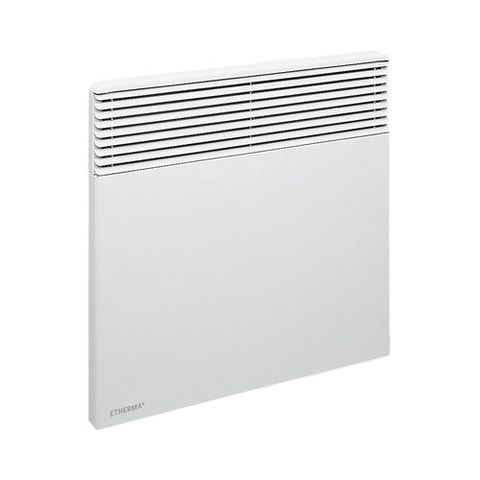

ETHERMA SN ECO – SERENA CONVECTOR
Electric direct heating for fast warming in living areas, cellars, toilets, bedrooms and even hobby rooms. This design is also ideal for bathrooms, as the units are all water spray-resistant.
The specially shaped air output grille distributes the warmed air uniformly and thus generates natural room convection. The electronic controller ensures that the temperature that you want is maintained precisely, to within 0.1ºC. An external time switch can reduce the room temperature by 4ºK.
Benefits of this product
Fast heating due to the Monobloc heating element
No wall discolouration as heat gets released to the front
Accurate electronic room temperature measurement
4 modes: Comfort, reduction, frost protection, off through
control line or programming on device
Suitable for bathrooms
Weekly program optimizes operating times
Child lock
Ecodesign guidelines compliant
Technical data
| Voltage: | 230 V |
| Output: | 500 - 2000 W |
| Temperature range: | 7 - 27°C |
| Control: | Electronic thermostate |
| Surface: | Steel housing, powder coated |
| Colour: | Traffic white RAL 9016 |
| Device depth: | 105 mm |
| Protection class: | II |
| IP rating: | IP 24 |
| Connection cable: | 2 pin + working lenght 90 cm |
| Certification:: | EC compliant |
Selection guide
The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.
The following is a guide:
30-55 W/m² Low energy and passive
house
60-80 W/m² Well insulated housing
85-105 W/m² Moderately insulated housing
110-130 W/m² Poorly insulated housing
