DISTRIBUTOR INSTALLATION Product overview and technical data.

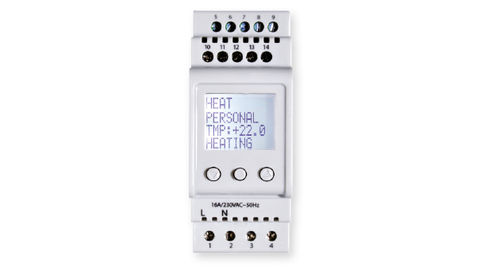

ETHERMA ITR-80 Electronic thermostat for manifold installation with digital display

The ITR-80 is a universal thermostat that has four different modes:

Heating, Cooling, Industrial or MAX/MIN mode. The device is universally designed for heating and cooling applications. Temperature and humidity can also be measured using additional sensors (not included). Various control characteristics can be influenced via the parameterization. The setpoint and all controller parameters are set using three operating buttons.

  • Universal thermostat with four different modes

    For heating and cooling applications

    Additional sensors for temperature and humidity measurement

Voltage: 230 V
Current: 16 A
Installation: On standard rail
Temperature range: -15°C to +75°C
Width: 35 mm (2TE)
Floor sensor: 3 m
IP rating: IP 20
Certification: CE compliant

This controller fulfills the following control functions: TW (f4, f8)
